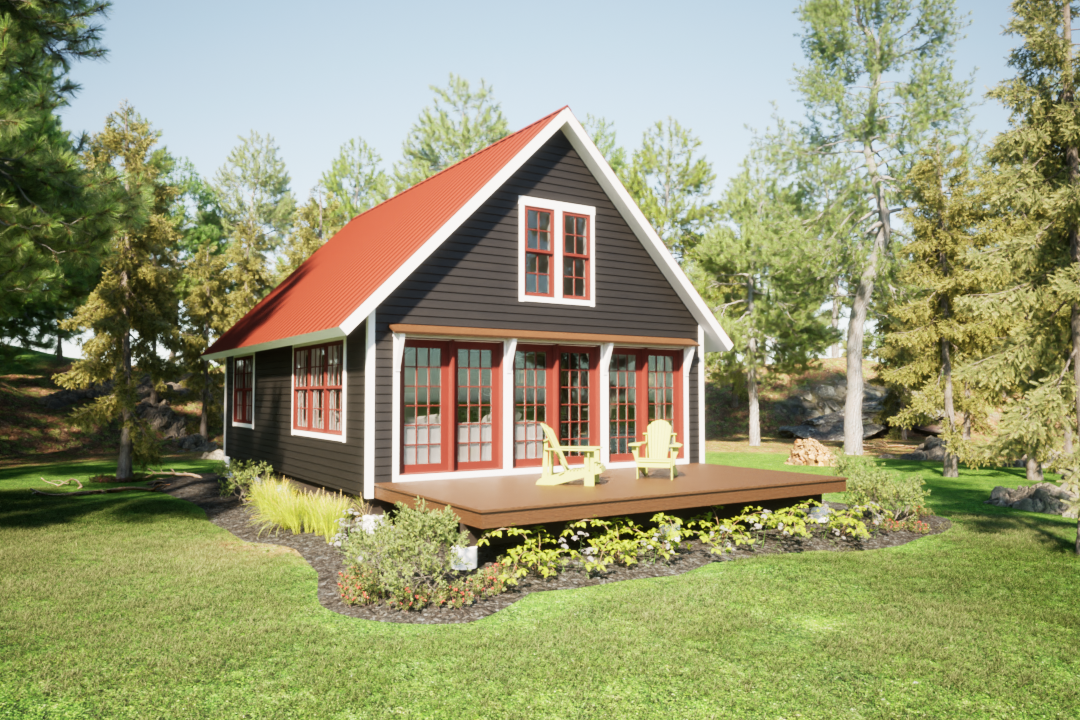

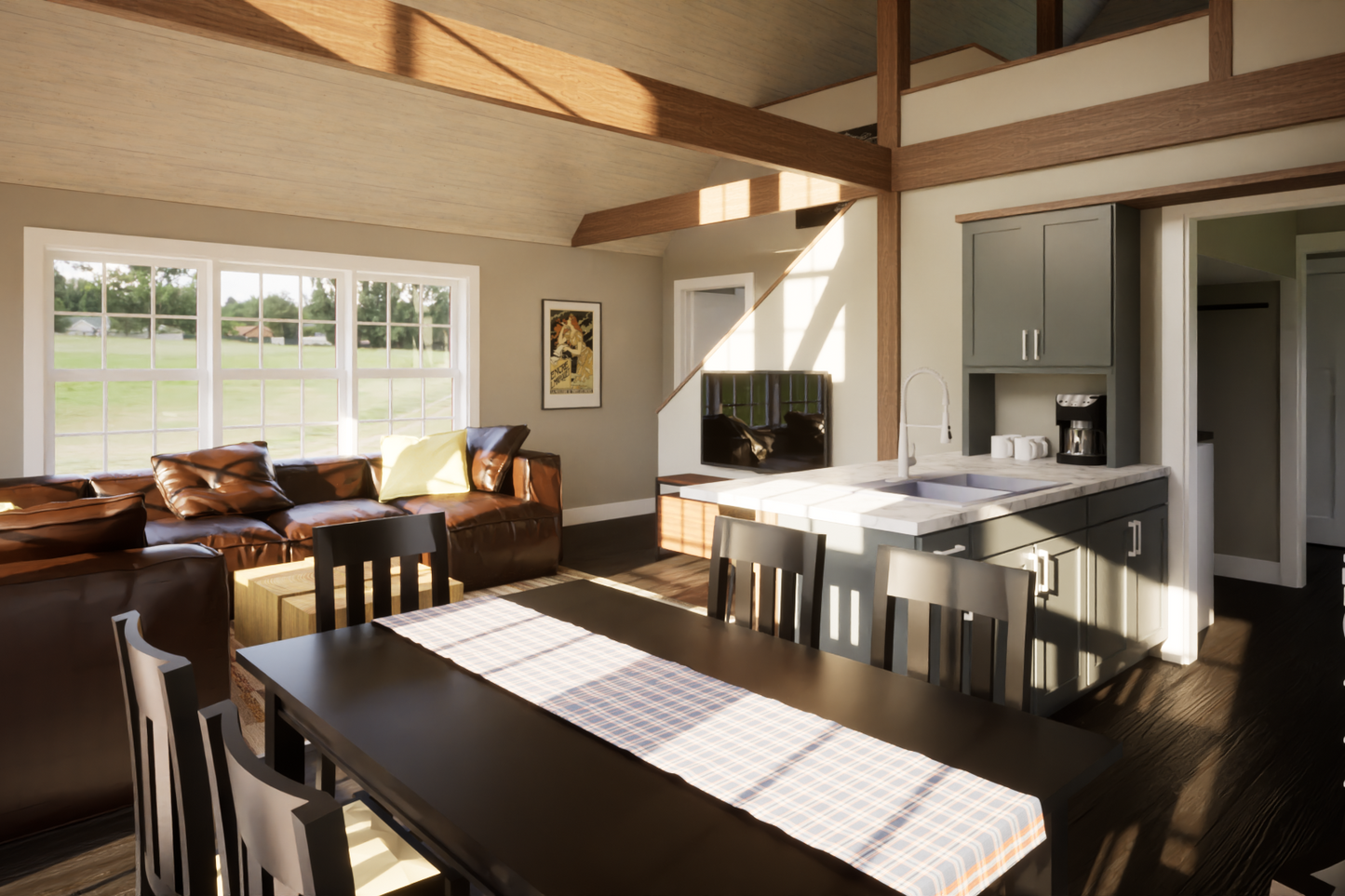

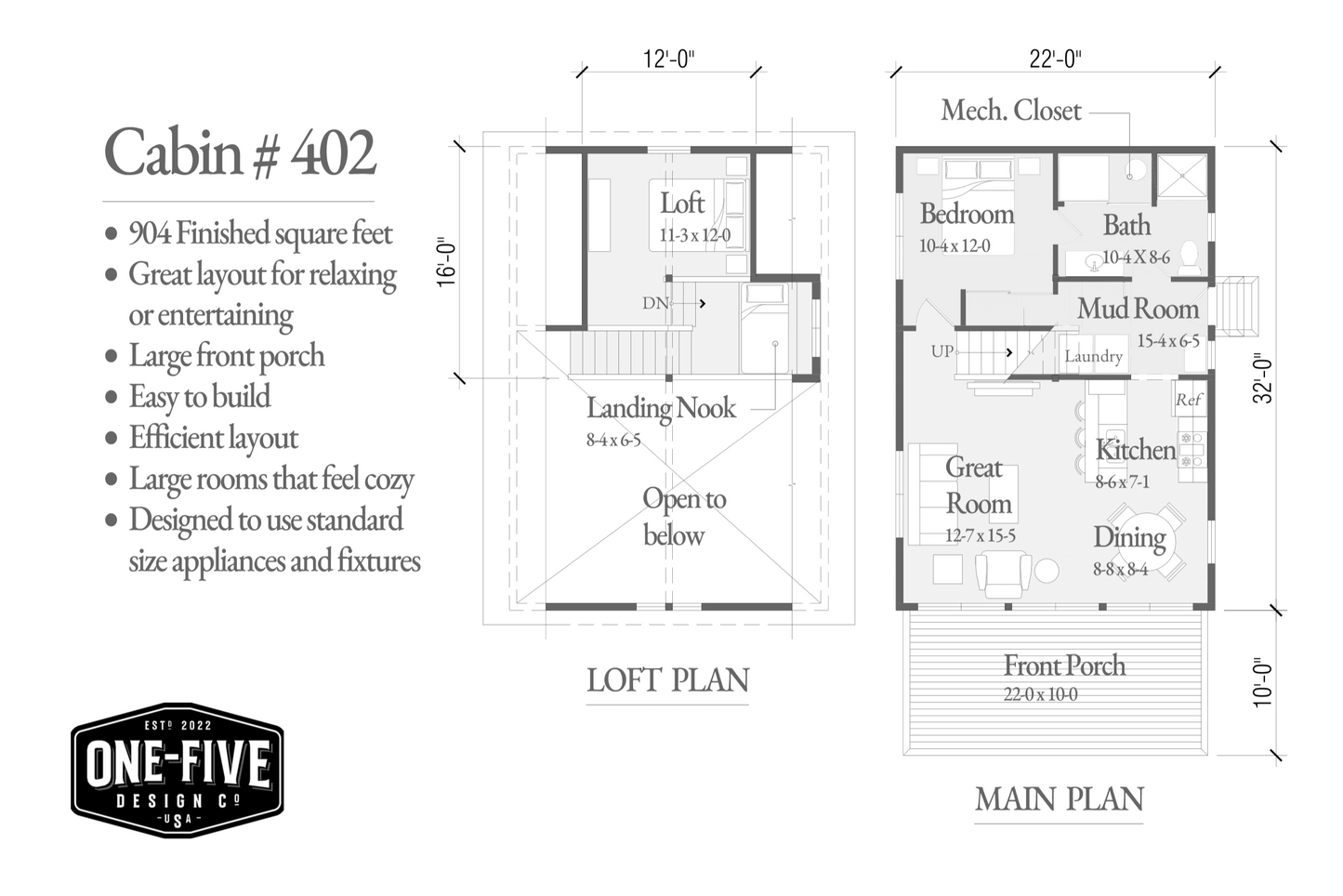

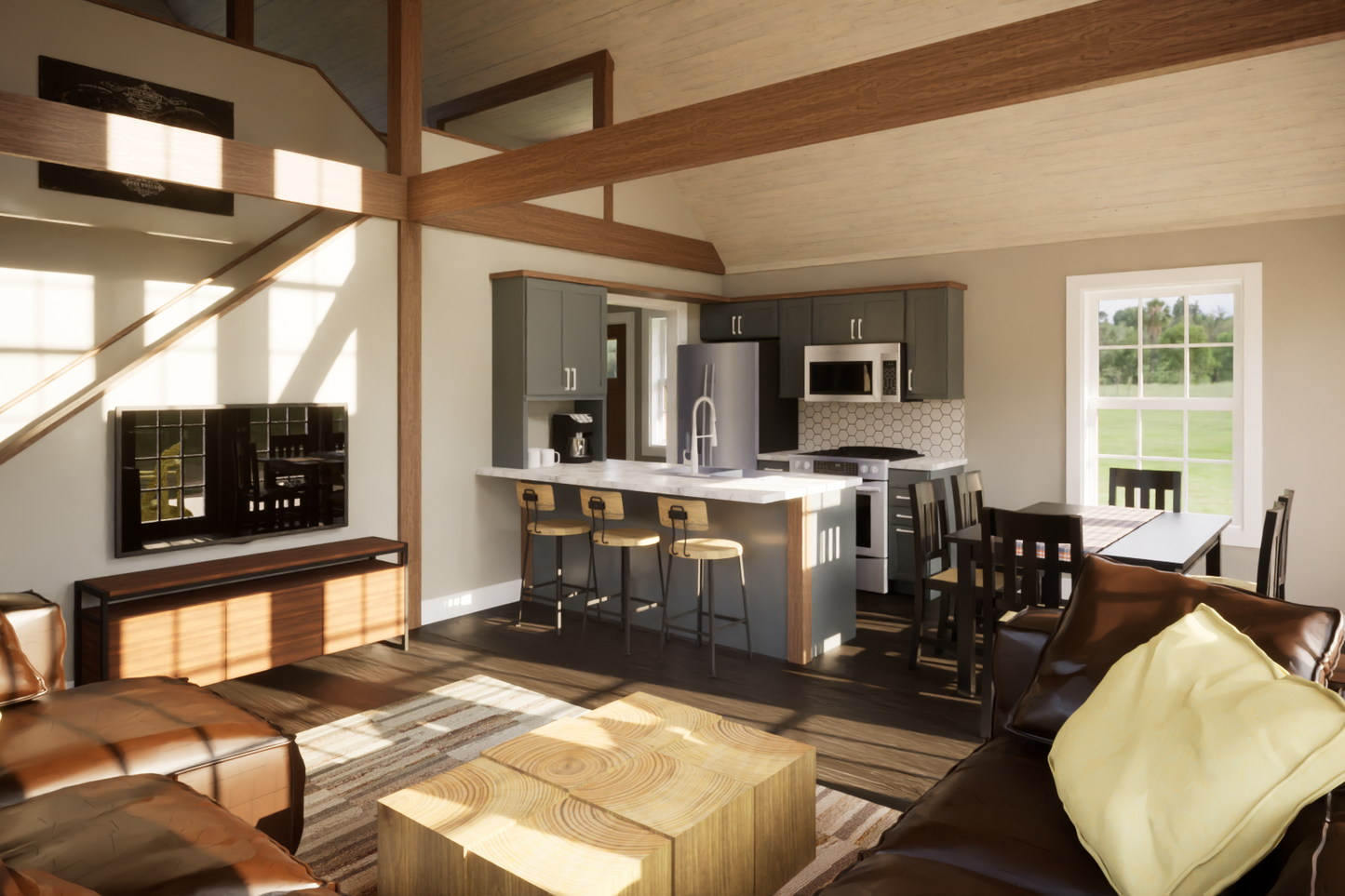

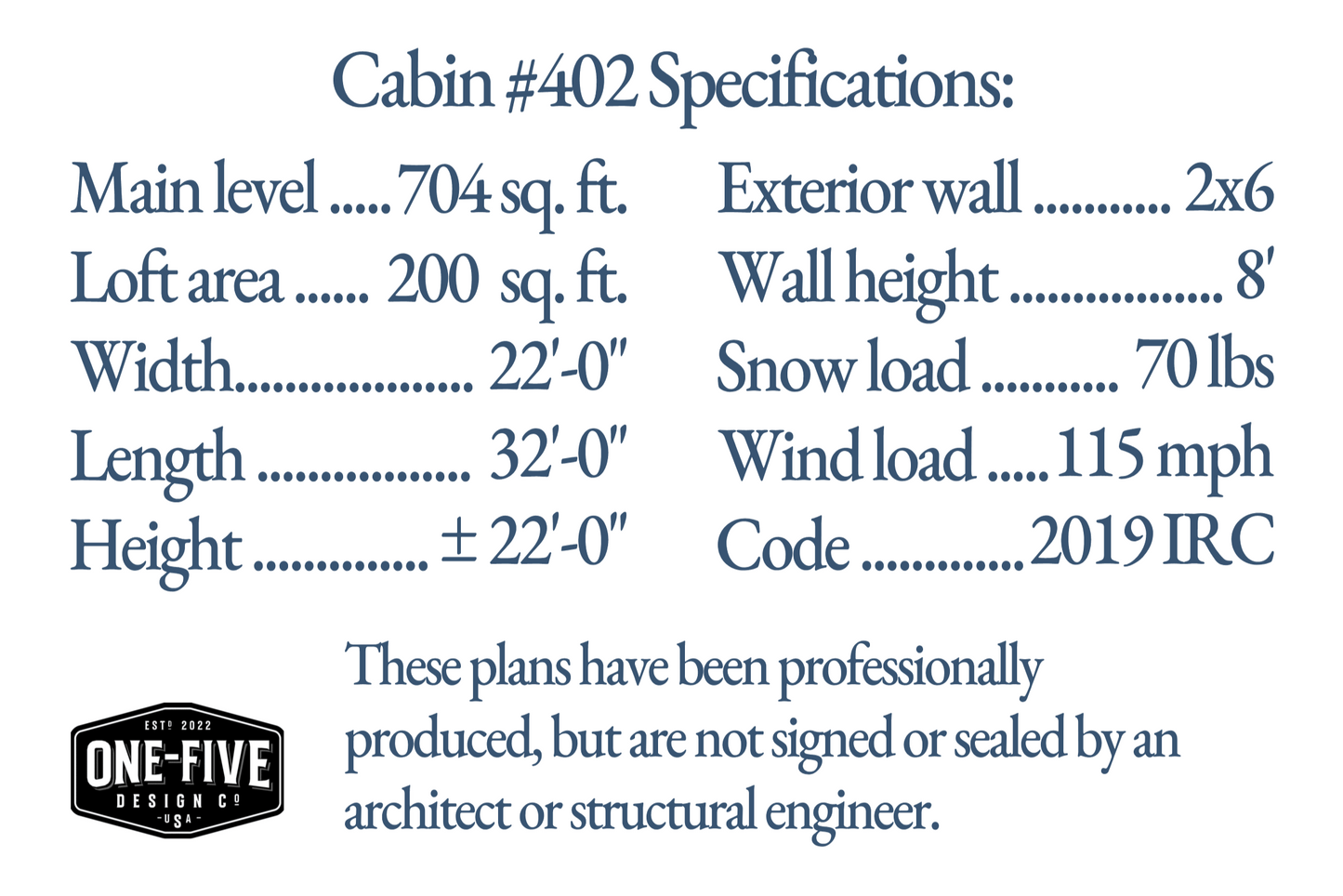

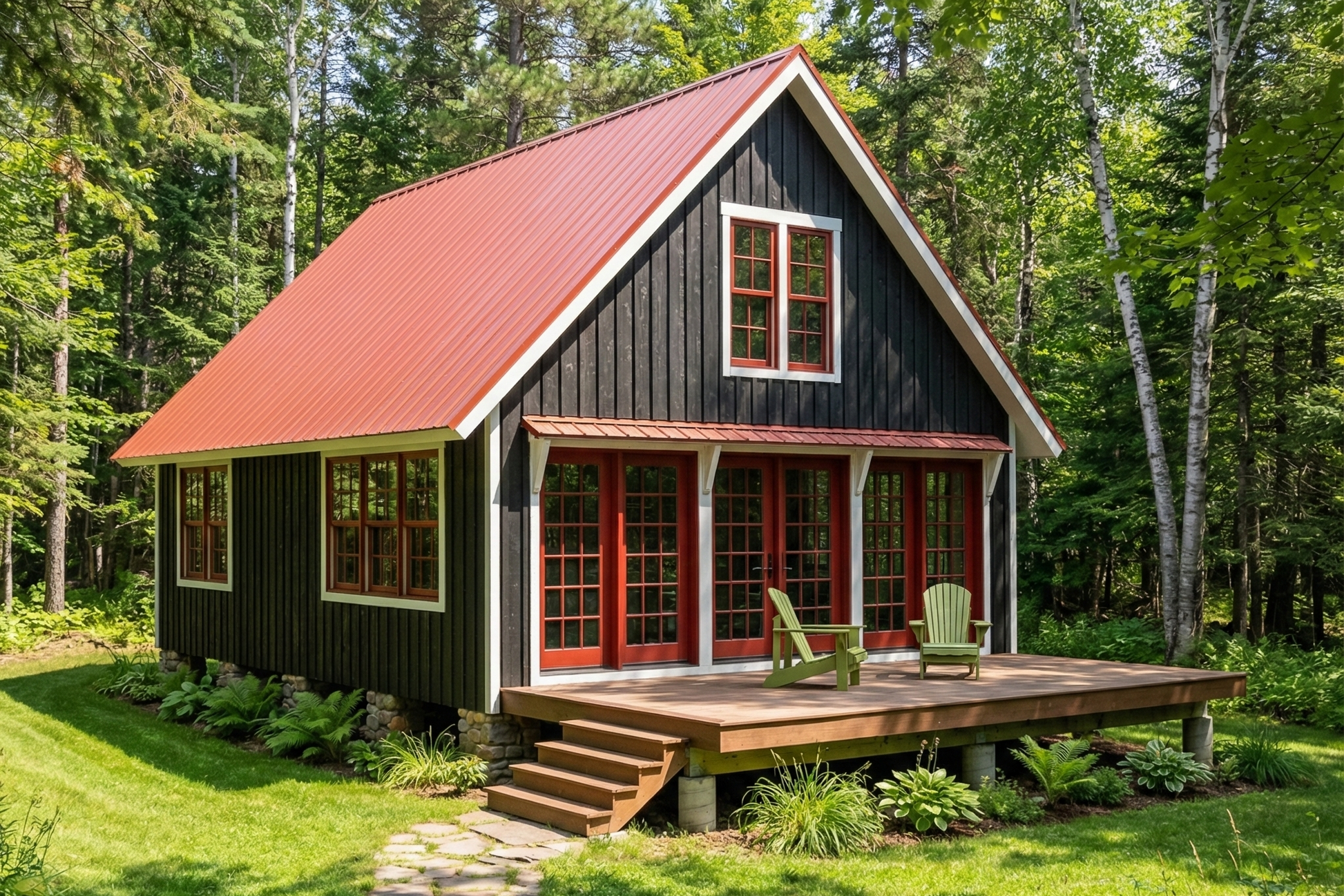

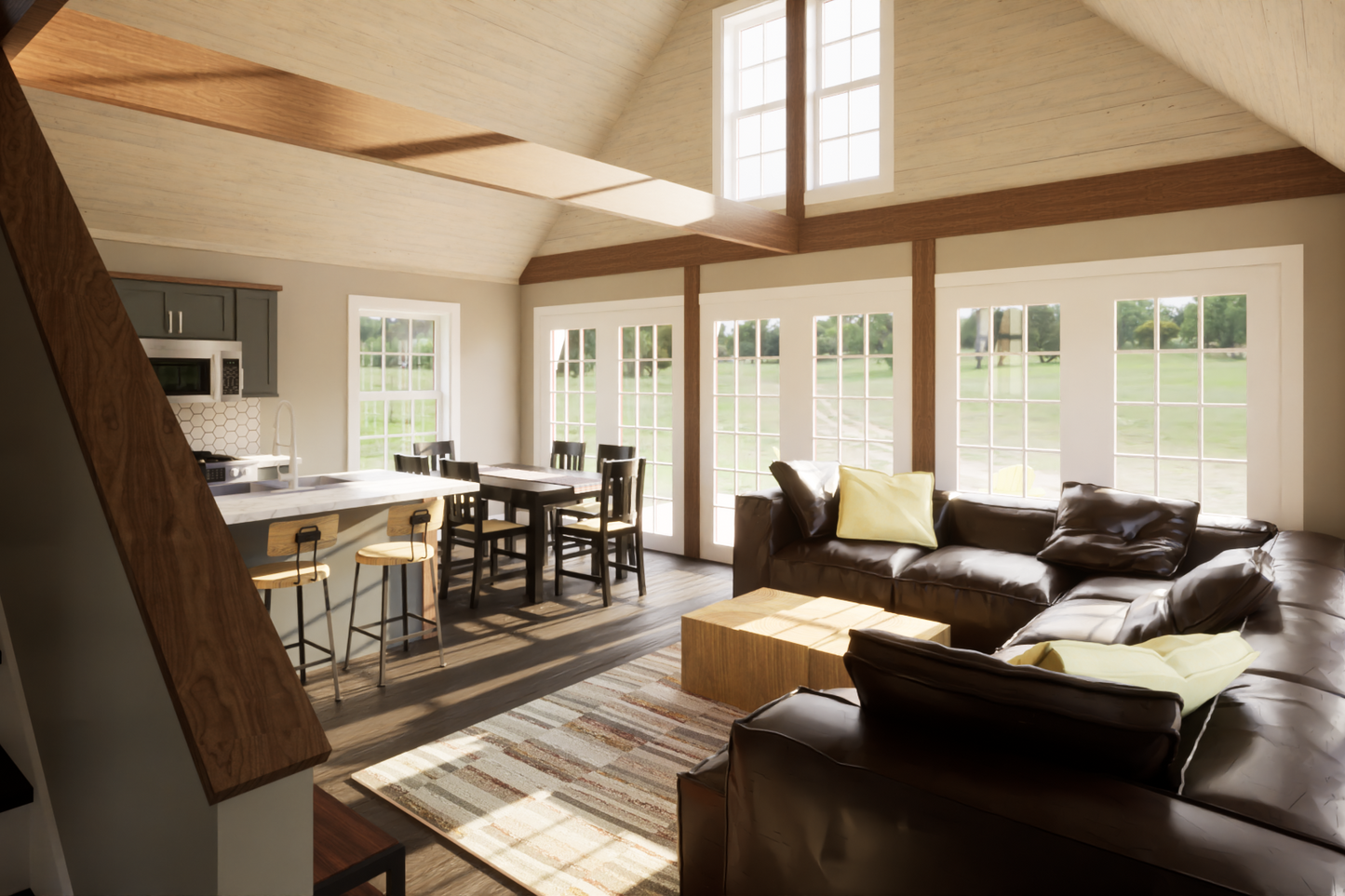

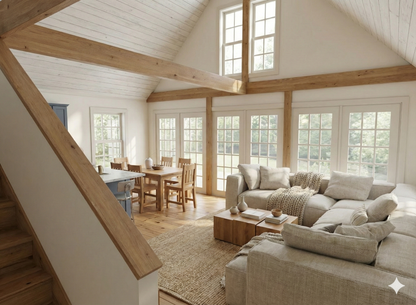

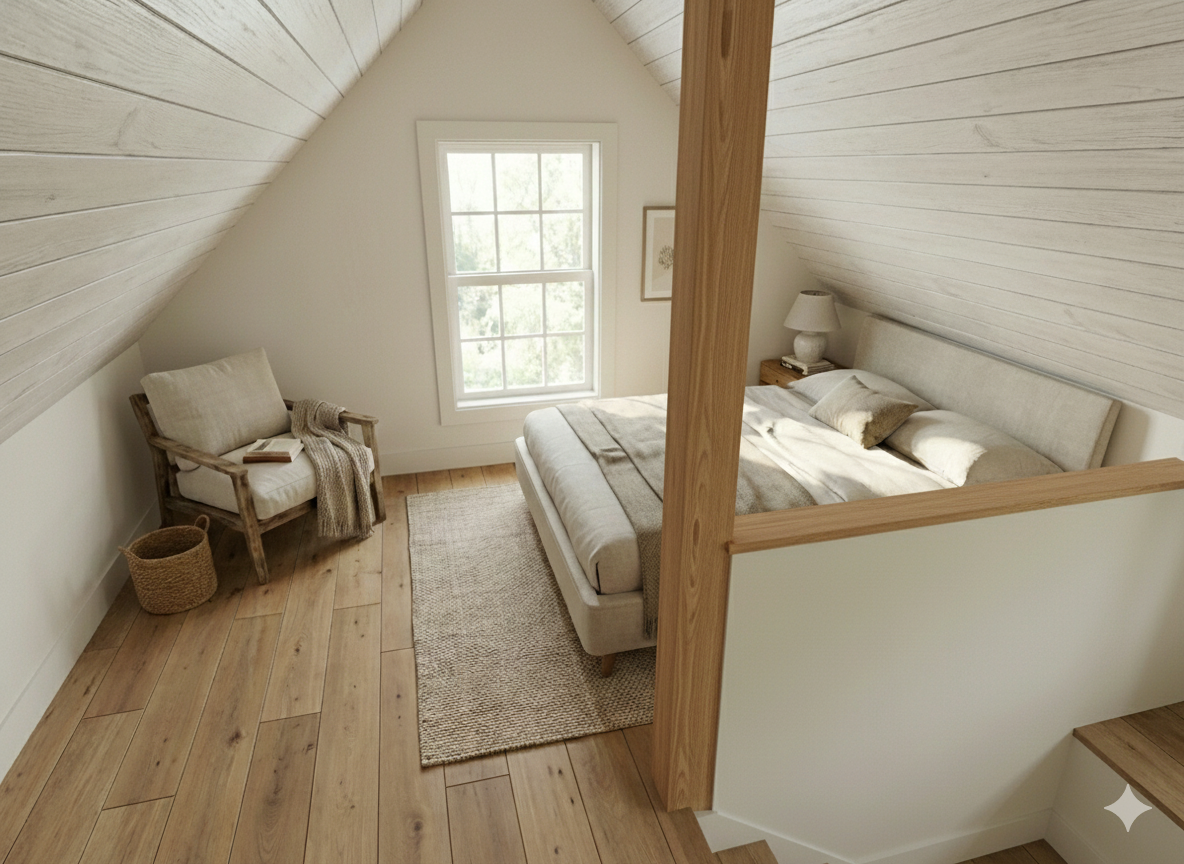

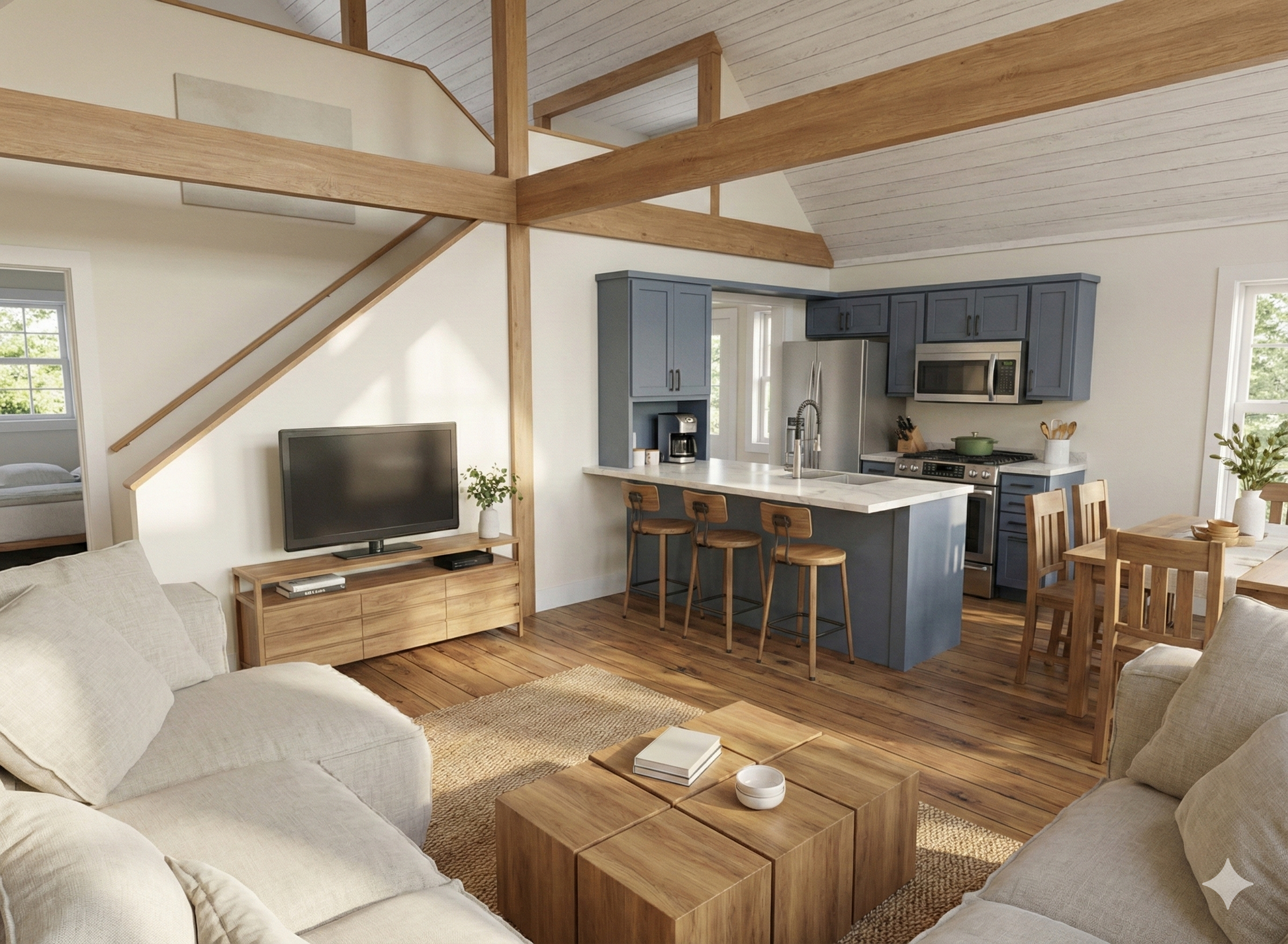

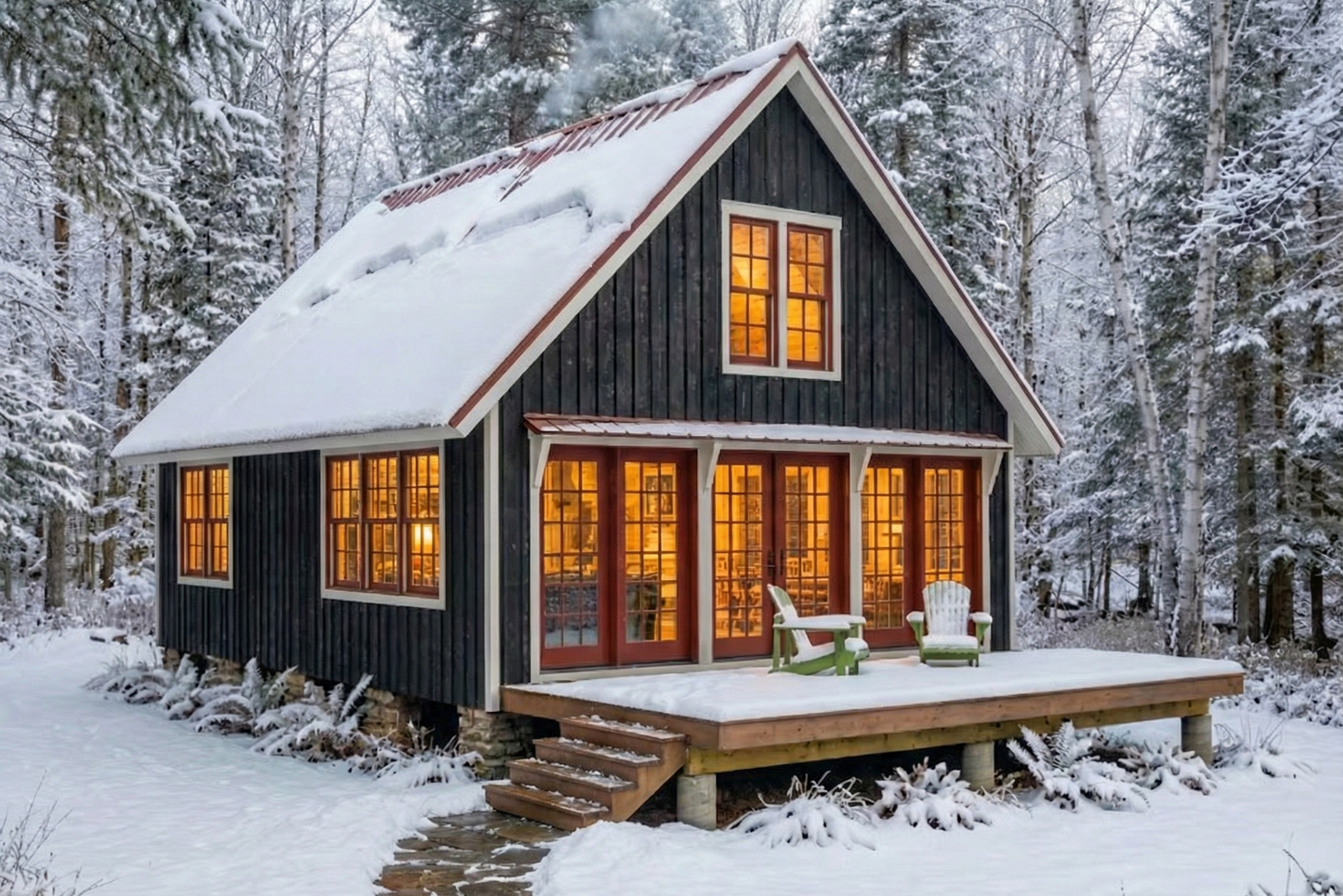

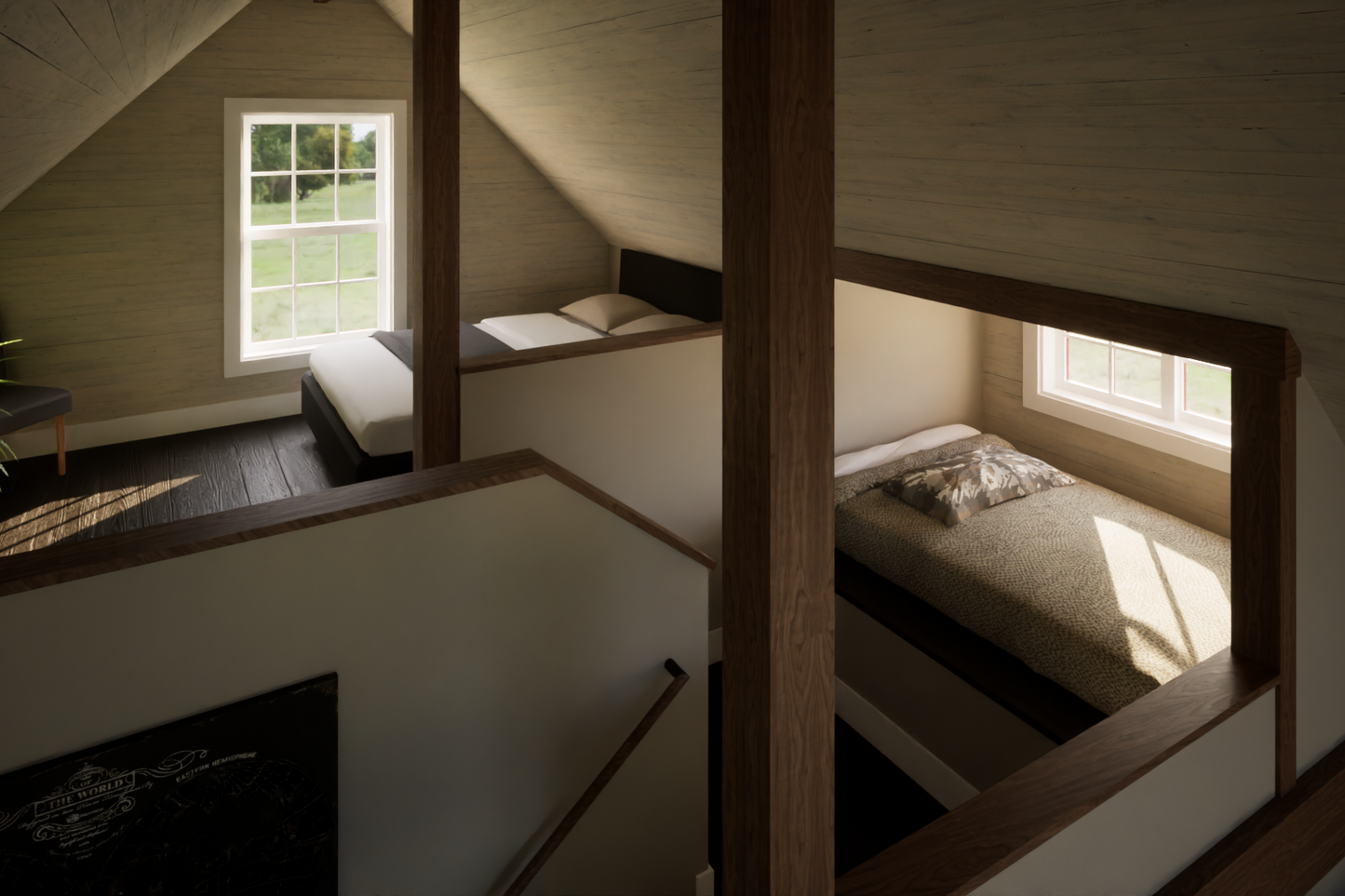

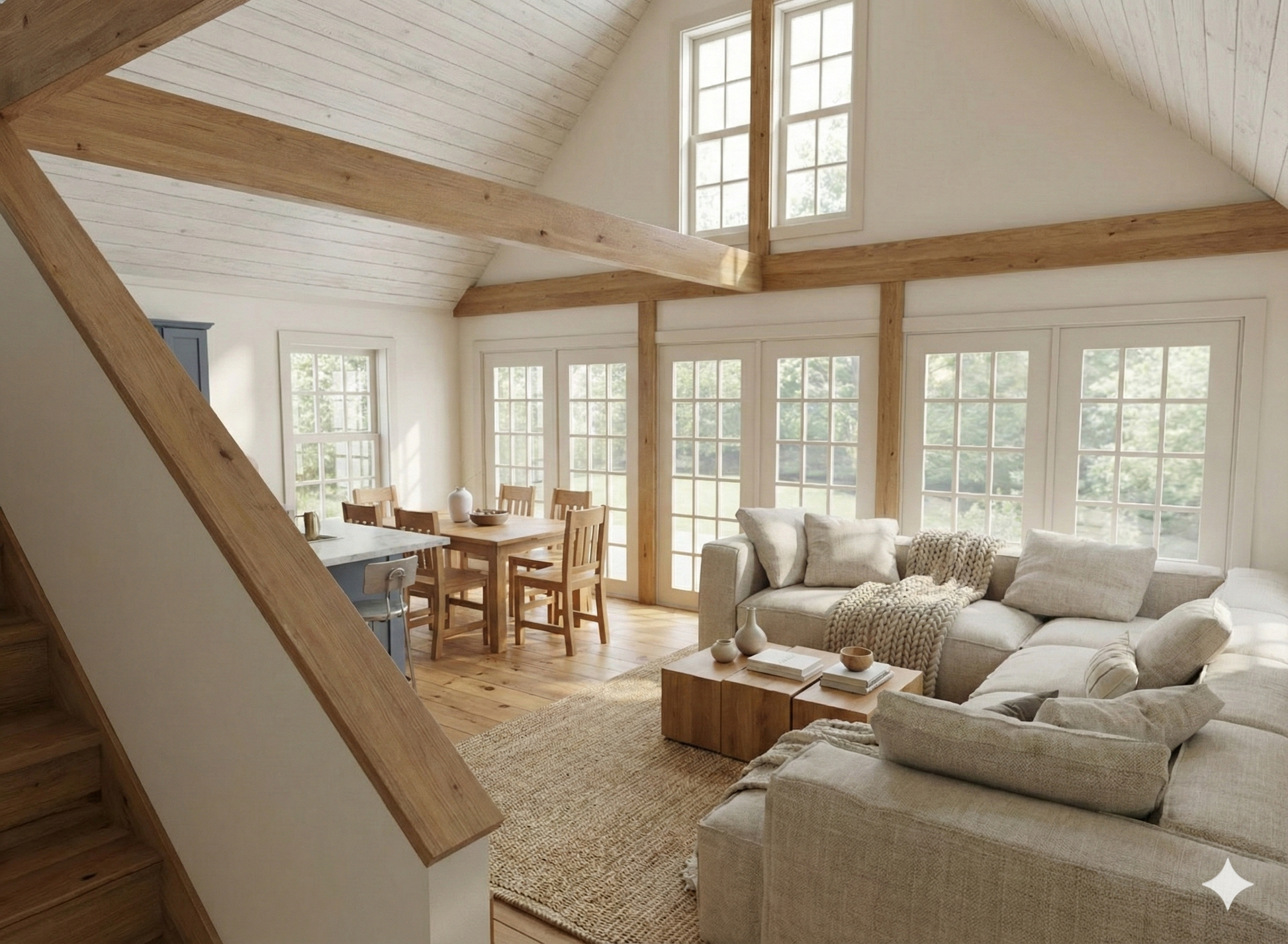

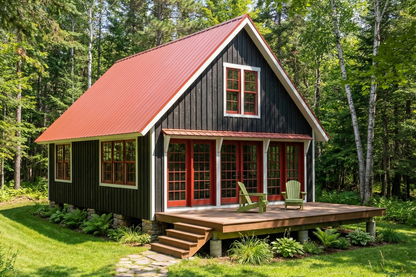

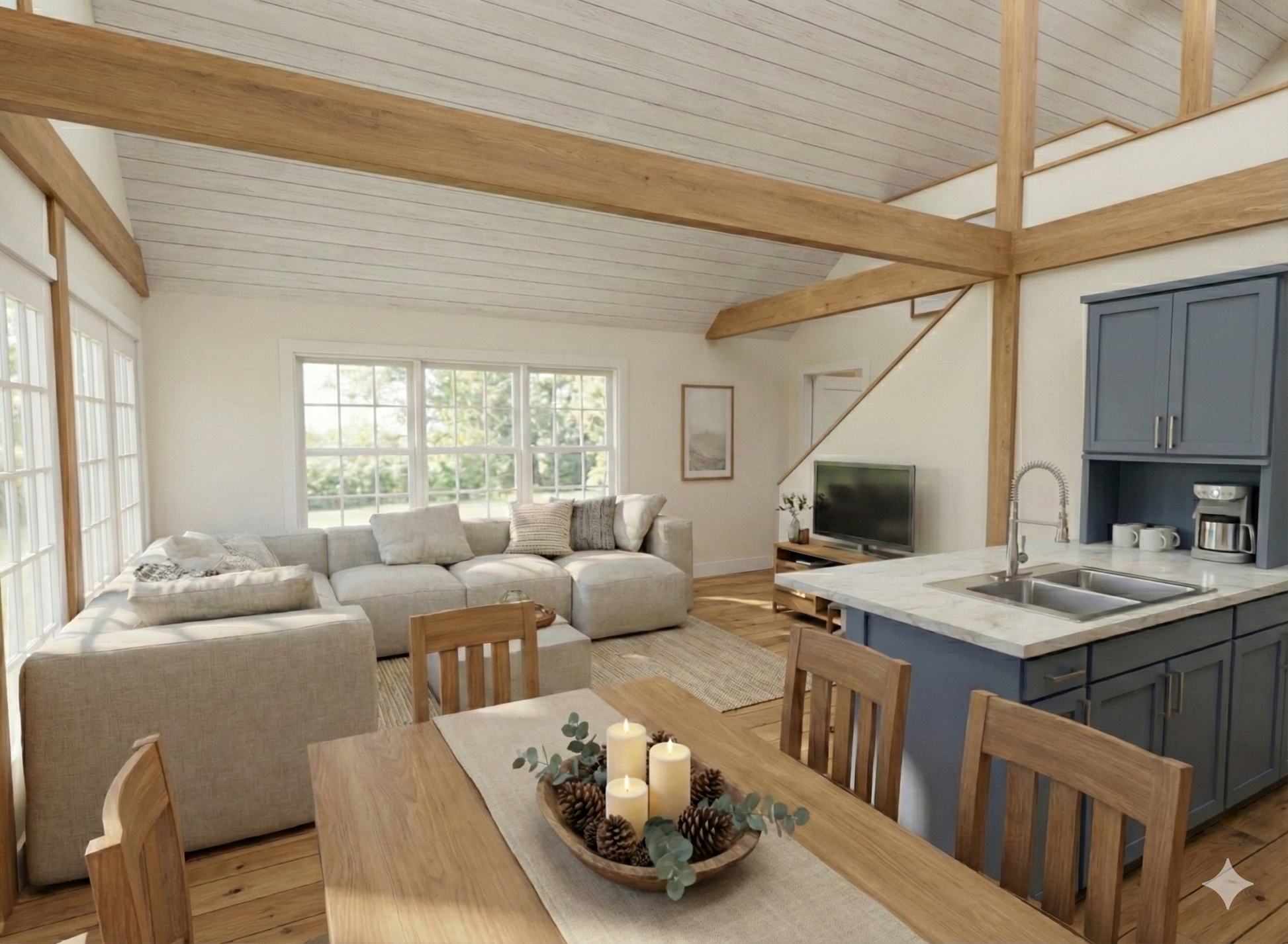

The #402 is a 22' x 32' 1 Bedroom, 1 Bath cabin with open sleeping loft totaling 904 sq. ft. (704 main, 200 loft). These drawings have been professionally produced and are ready for construction. The Cabin design includes 3 French doors for great lighting. It also includes an open living room , dining room and kitchen with full height vaulted ceilings. The main level bedroom is connected directly to the bathroom and laundry area.

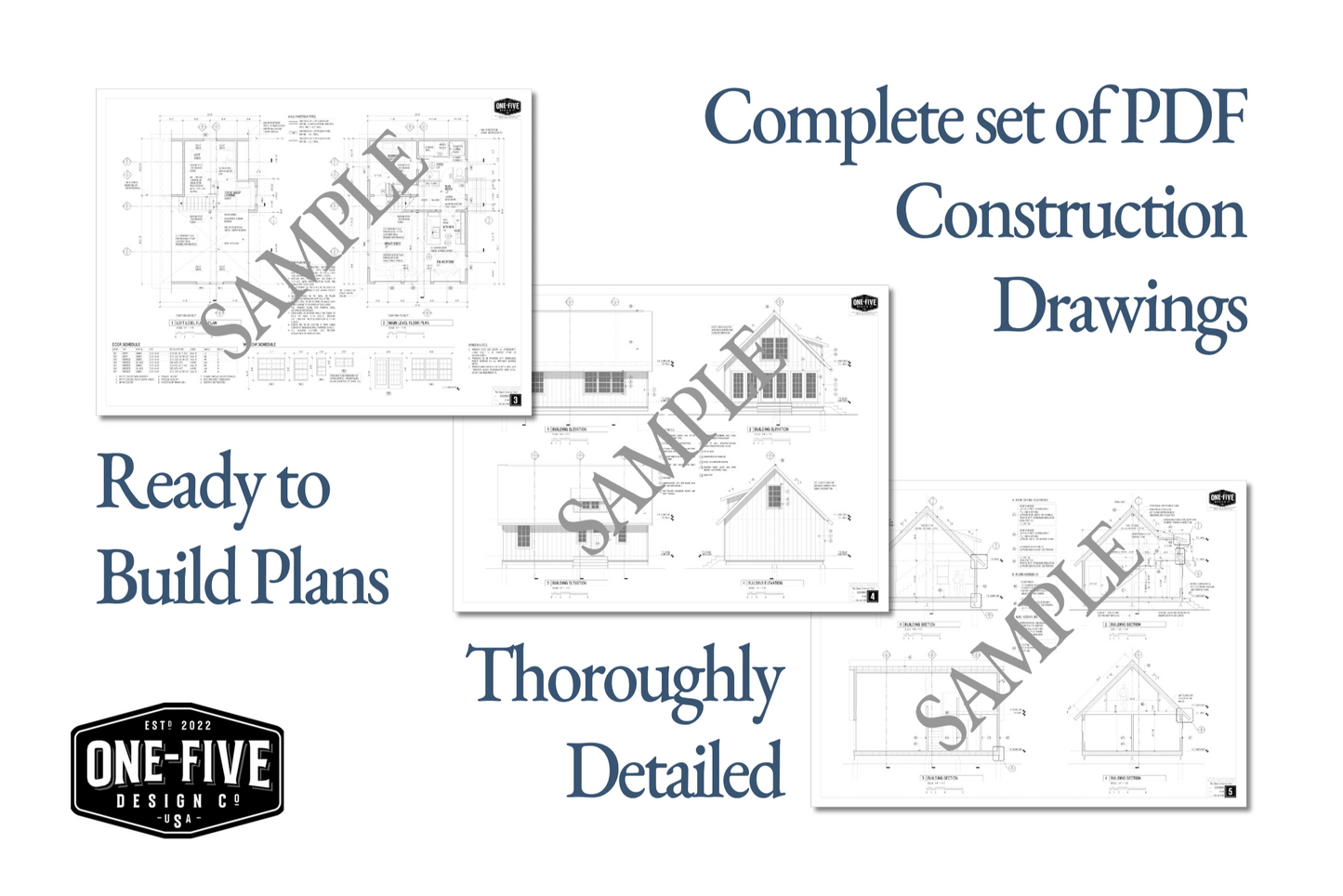

This cabin was designed for efficiency, practicality and beauty. These drawings are considered to be a full set of construction drawings and can be used to submit for permit and pricing. These are not 'concept' plans. After downloading the PDF it can be sent to a local printer or office supply store for printing the full size 18"x24" sheets.
Instant Delivery
Safe & Secure
Affordable
What is included?

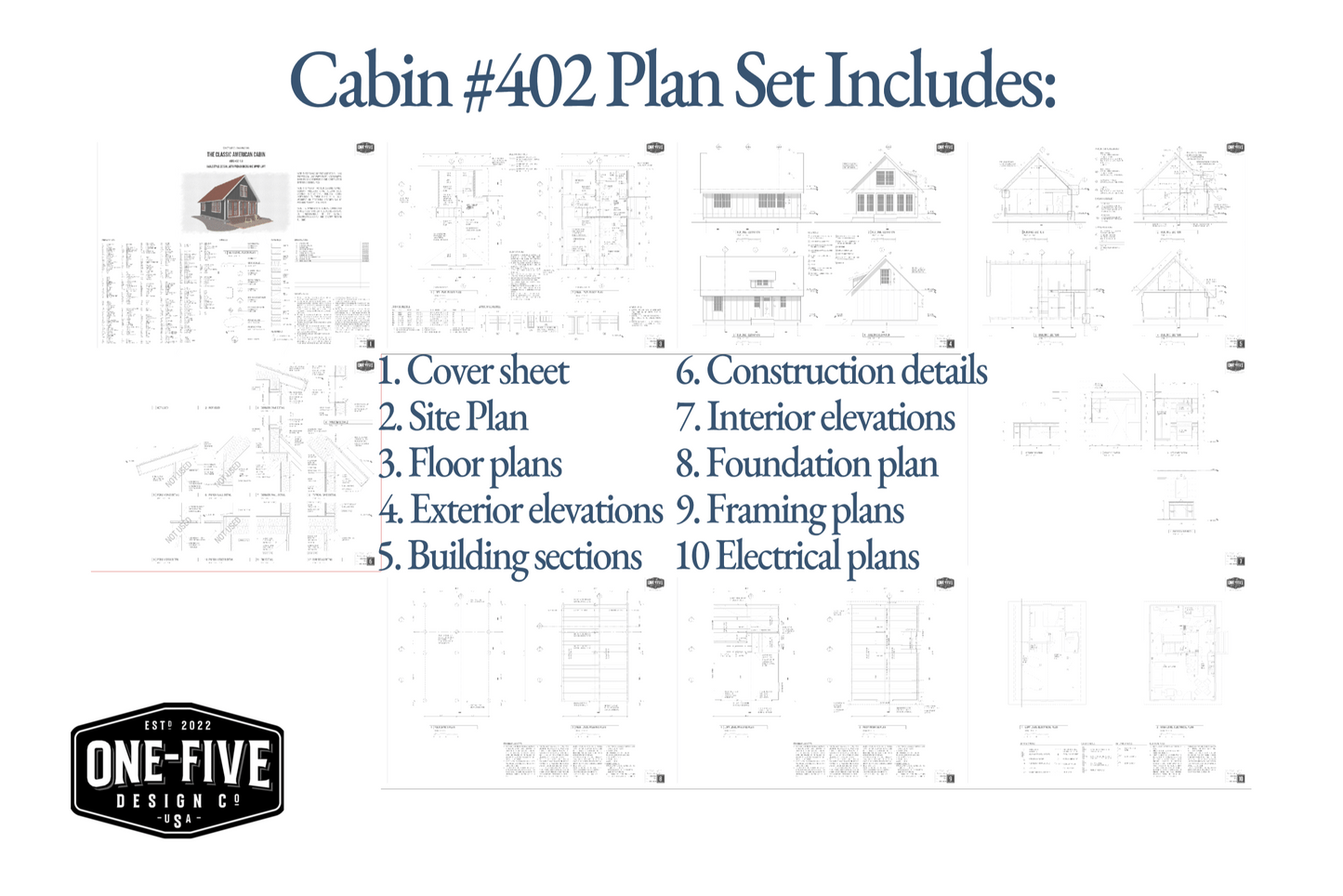

This (digital download) set of PDF plans include:
Cover sheet
Site plan (options)
Floor plans with Door schedule and Window schedule
Exterior elevations
Building sections
Construction details
Interior cabinet elevations
Foundation plan
Floor framing plans
Wall framing information
Roof framing plan
Foundation and framing details
Electrical/ Lighting plans.
