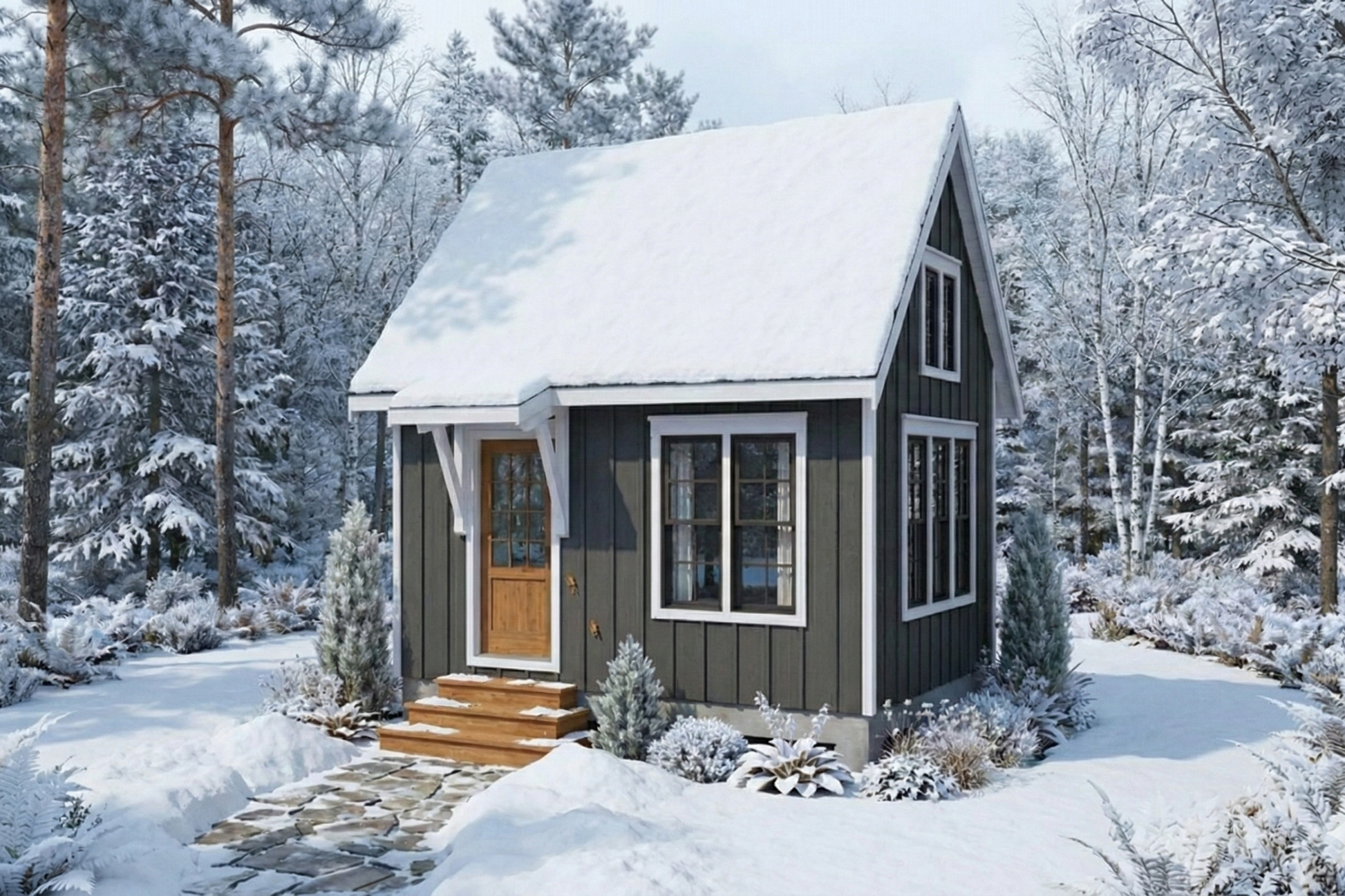

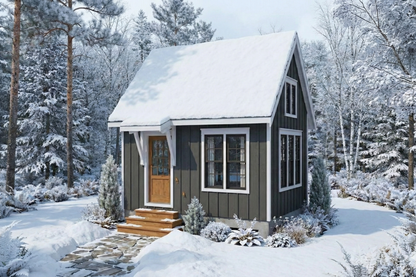

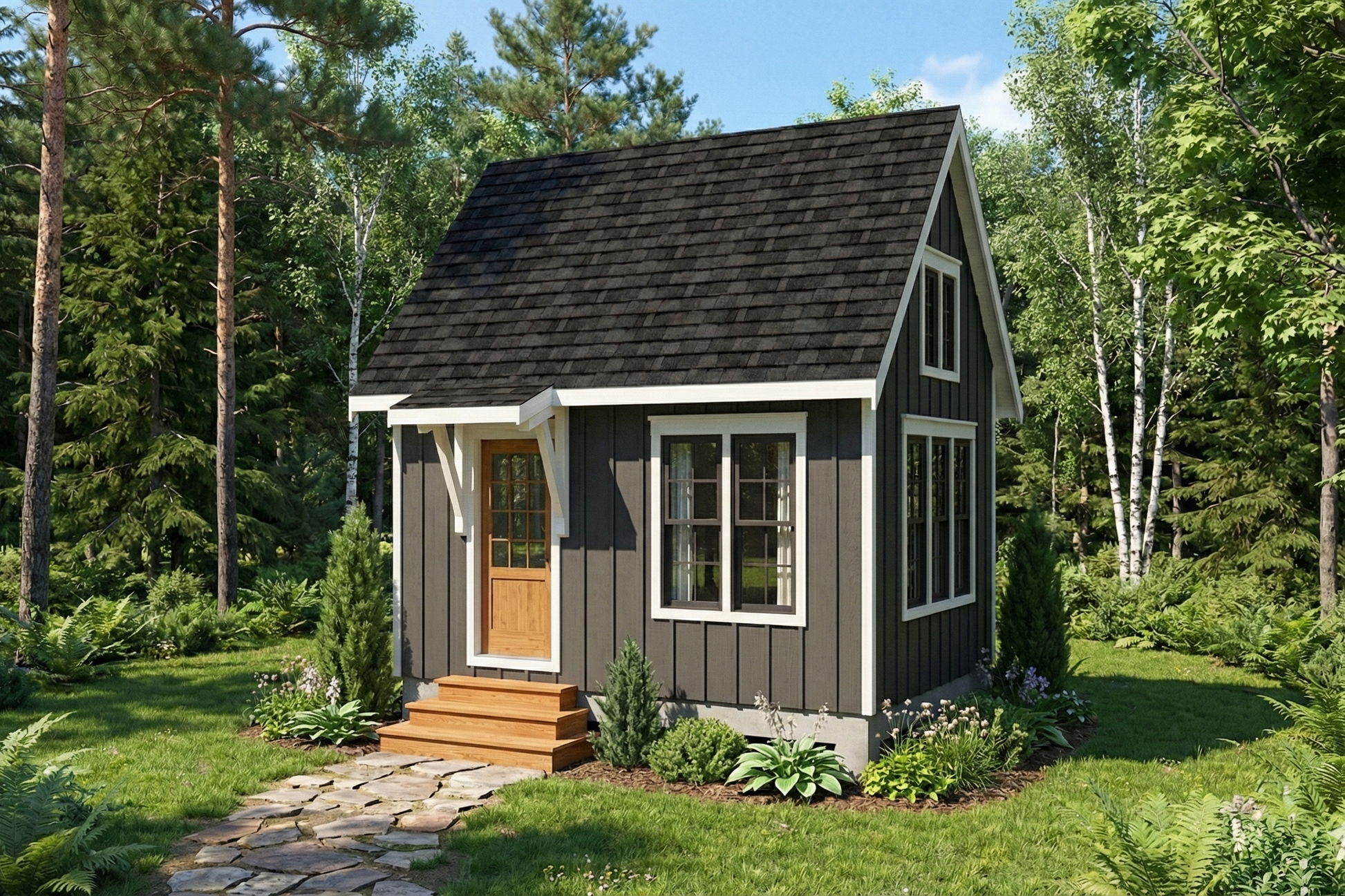

Cabin No. 406

Small off-grid cabin plans with loft – 12'x16' tiny cottage design PDF. DIY tiny home blueprint with sleeping loft, open concept, off-grid getaway – instant download.

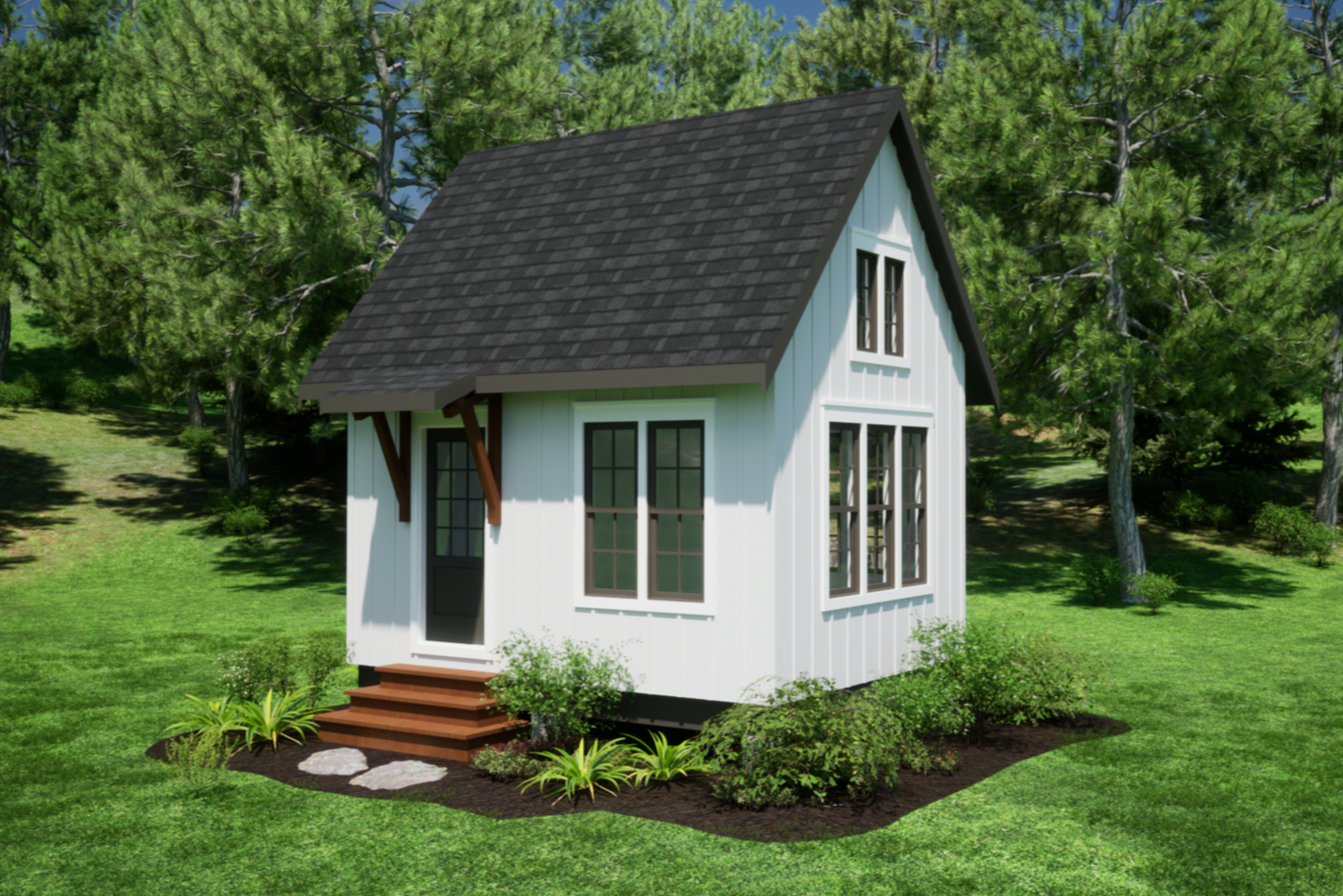

This cabin was designed for efficiency, practicality and beauty – a 12'x16' cottage house design. Perfect for a DIY build, guest house, or off-grid getaway. This tiny home blueprint features an open concept living area, all on the main level, plus a light-filled sleeping loft. Professionally drawn and ready for construction, these plans are an instant download so you can start planning today.

Preview This Cabin (Free Cut Sheet Download)

Want a closer look before purchasing?
Download the 4-page Cabin 406 Cut Sheet — a visual overview showing layout, elevations, and design notes. It’s not the full plan set, but it will give you a clear sense of how the cabin is organized and how OFD plans are presented.

Download the 4-Page Cabin 406 Cut Sheet (PDF)

Plan Details:

Size: 16' x 24' footprint (260 sq. ft. total)
Layout: open living area, 1 Bath, open loft
Format: Professionally drawn PDF construction plans – instant download
Skill Level: Suitable for experienced homeowners with basic building knowledge

Features You’ll Love:

• Vaulted ceilings in open living area
• Generous window placement for great lighting and views
• Off-grid features for efficiency and independence

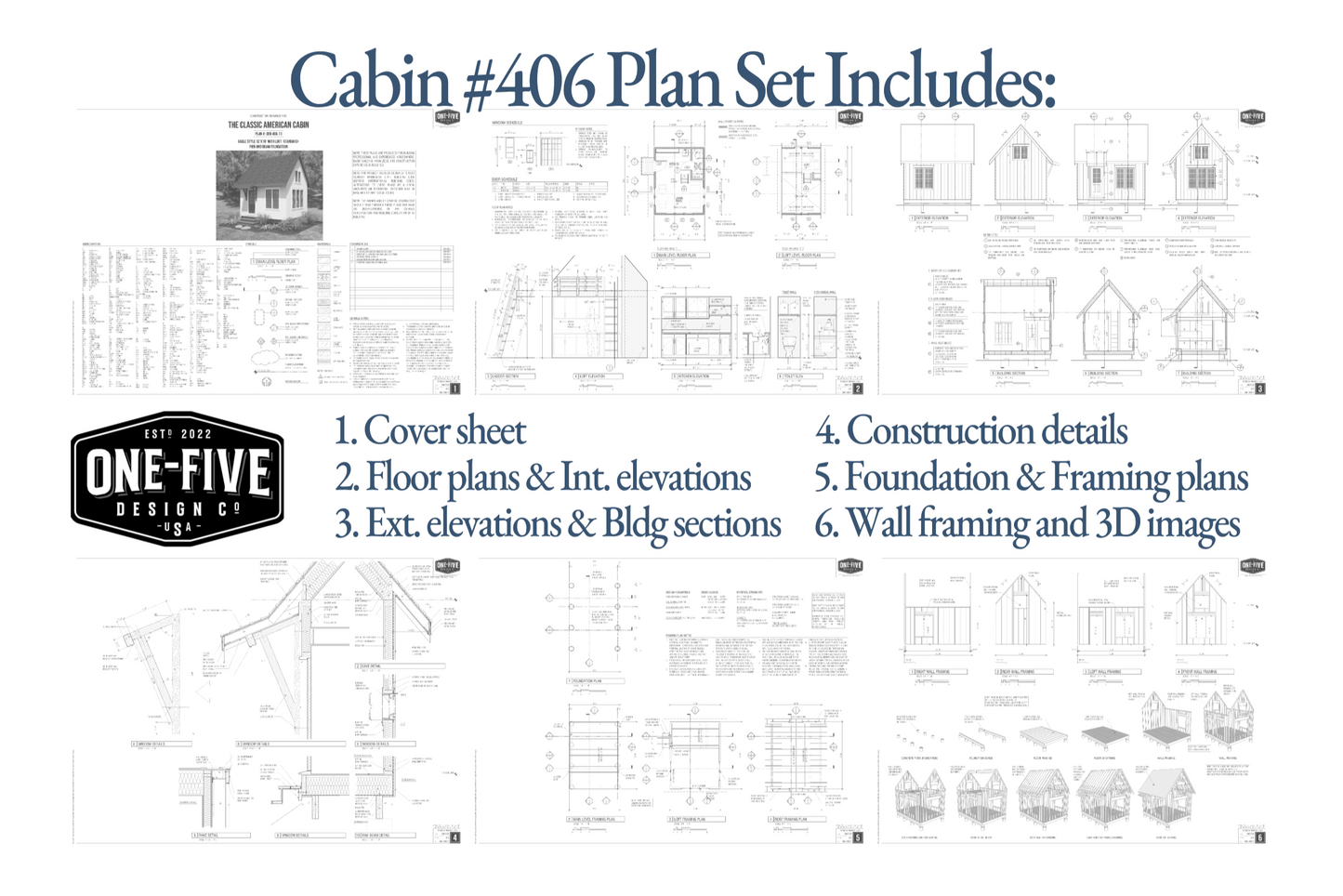

What’s Included in Your Plan Set:

• Cover sheet & site plan options

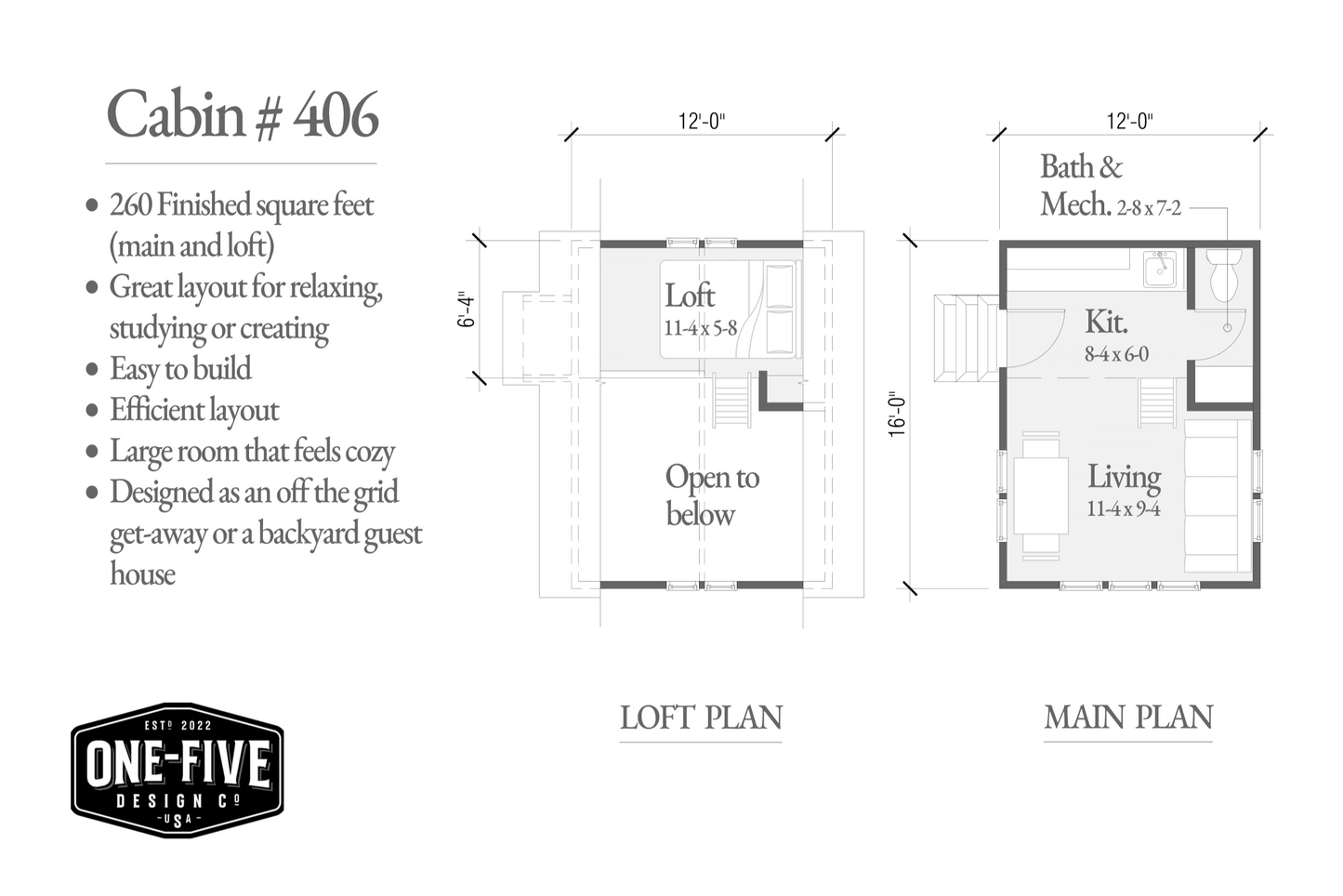

• Main level & loft floor plans
• Exterior elevations
• Building sections & construction details
• Interior elevations
• Foundation plan (pier, slab-on-grade, and crawlspace options)
• Framing plans
• Electrical layout for both levels

Why Choose This Plan:

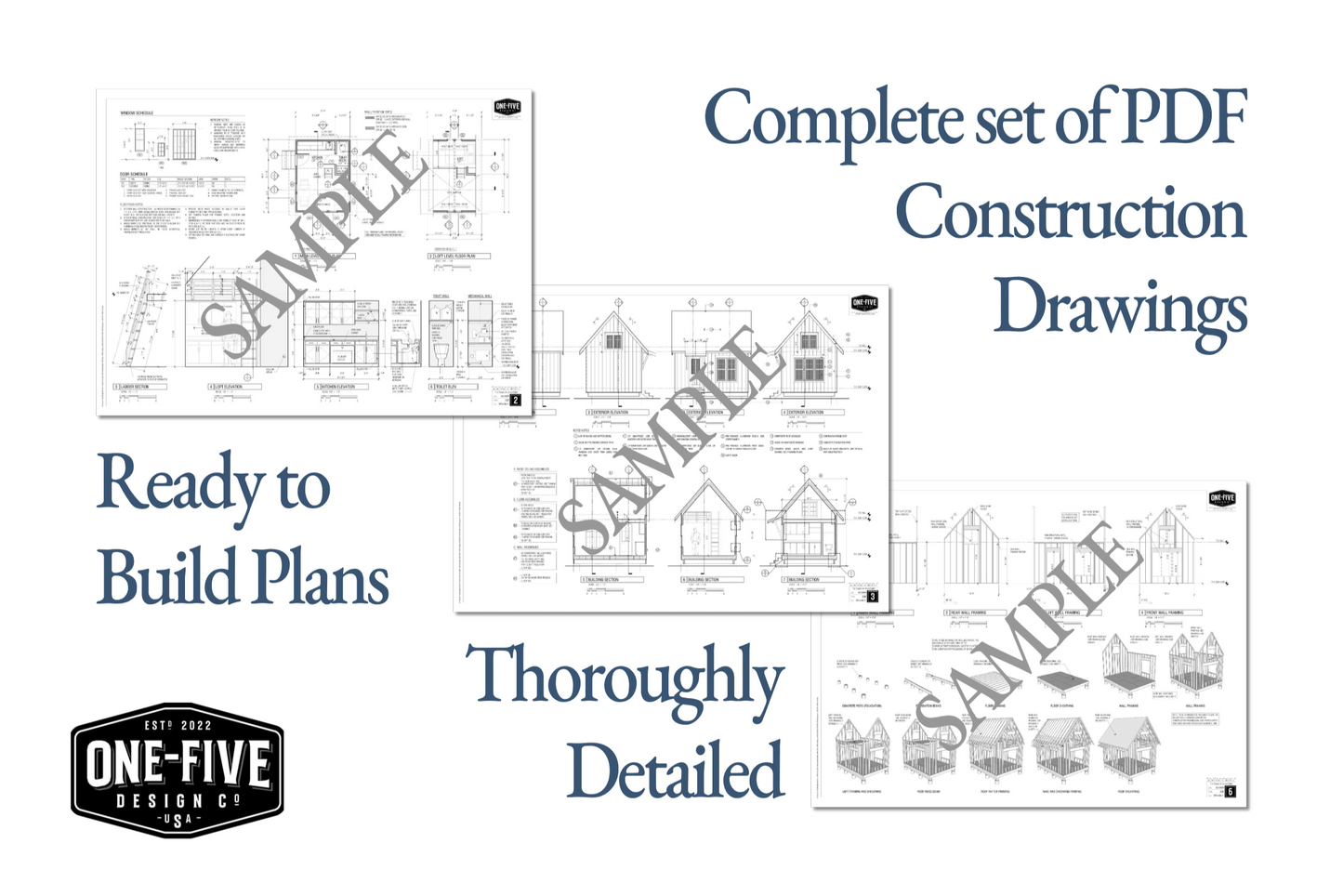

Ready for permit submittal and contractor pricing – not just concept drawings
Designed for efficiency, ease of construction, and timeless appeal
Instant download – send to a local print shop for printing (18"x24" sheets)

Whether you’re building a cozy weekend retreat, a functional guest house, or your forever small home, Cabin Plan #406 provides everything you need to start your project with confidence. These professionally drawn, permit-ready plans are designed for efficient, practical, and beautiful construction.

If you have any questions before purchasing, please send me a message — I’m always happy to help you choose the right plan and get you started on the right track.
