Cabin No. 405

Small cabin plans with loft – 16'x24' tiny cottage design PDF. DIY tiny home blueprint with front deck, open concept, 1 bedroom + bath – instant download.

This cabin was designed for efficiency, practicality and beauty – a 16'x24' cottage house design. Perfect for a DIY build, guest house, or vacation home. This tiny home blueprint features an open concept living area, front deck, 1 bedroom and bath on the main level, plus a light-filled sleeping loft. Professionally drawn and ready for construction, these plans are an instant download so you can start planning today.

Preview This Cabin (Free Cut Sheet Download)

Want a closer look before purchasing?
Download the 4-page Cabin 405 Cut Sheet — a visual overview showing layout, elevations, and design notes. It’s not the full plan set, but it will give you a clear sense of how the cabin is organized and how OFD plans are presented.

Download the 4-Page Cabin 405 Cut Sheet (PDF)

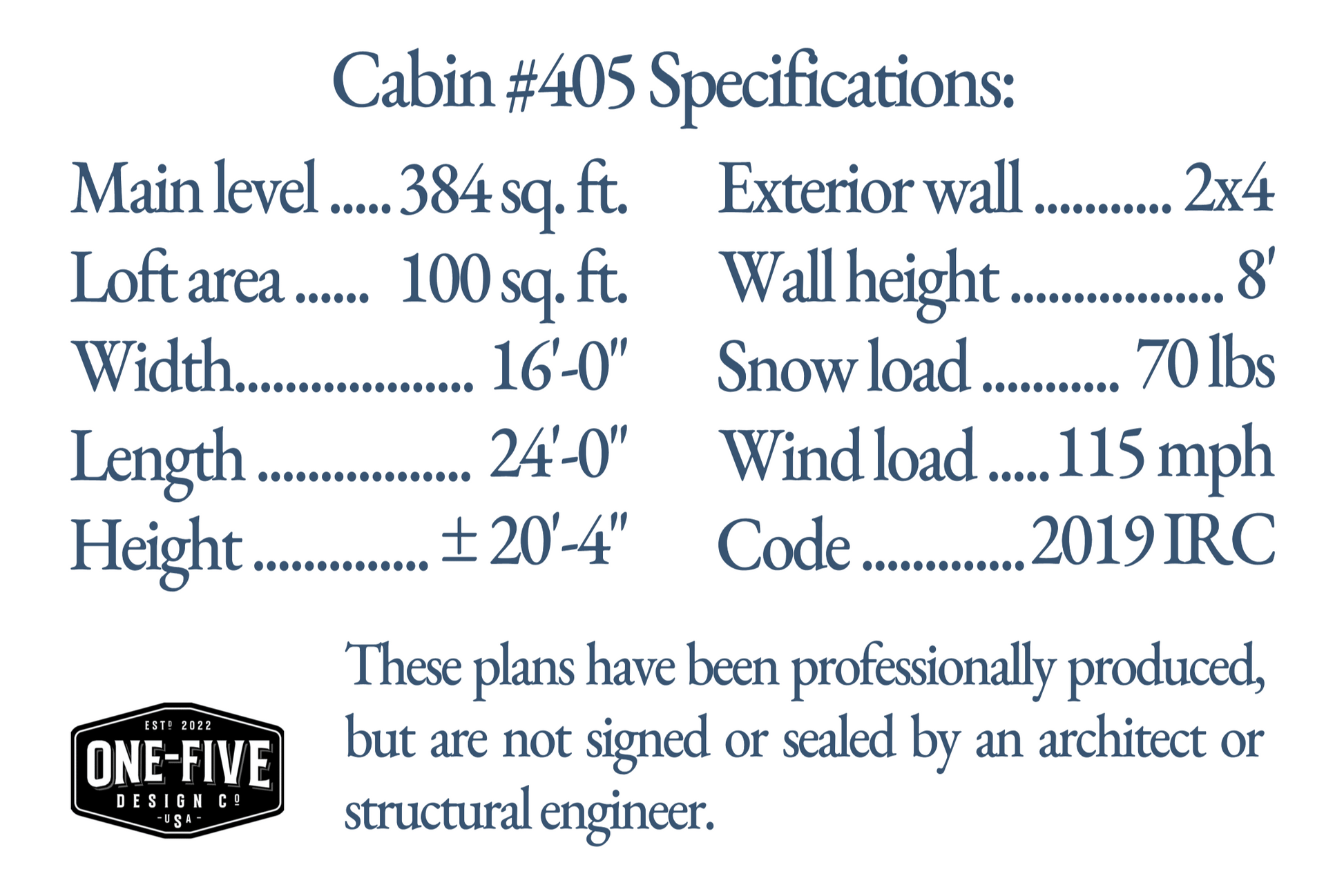

Plan Details:

Size: 16' x 24' footprint (484 sq. ft. total)

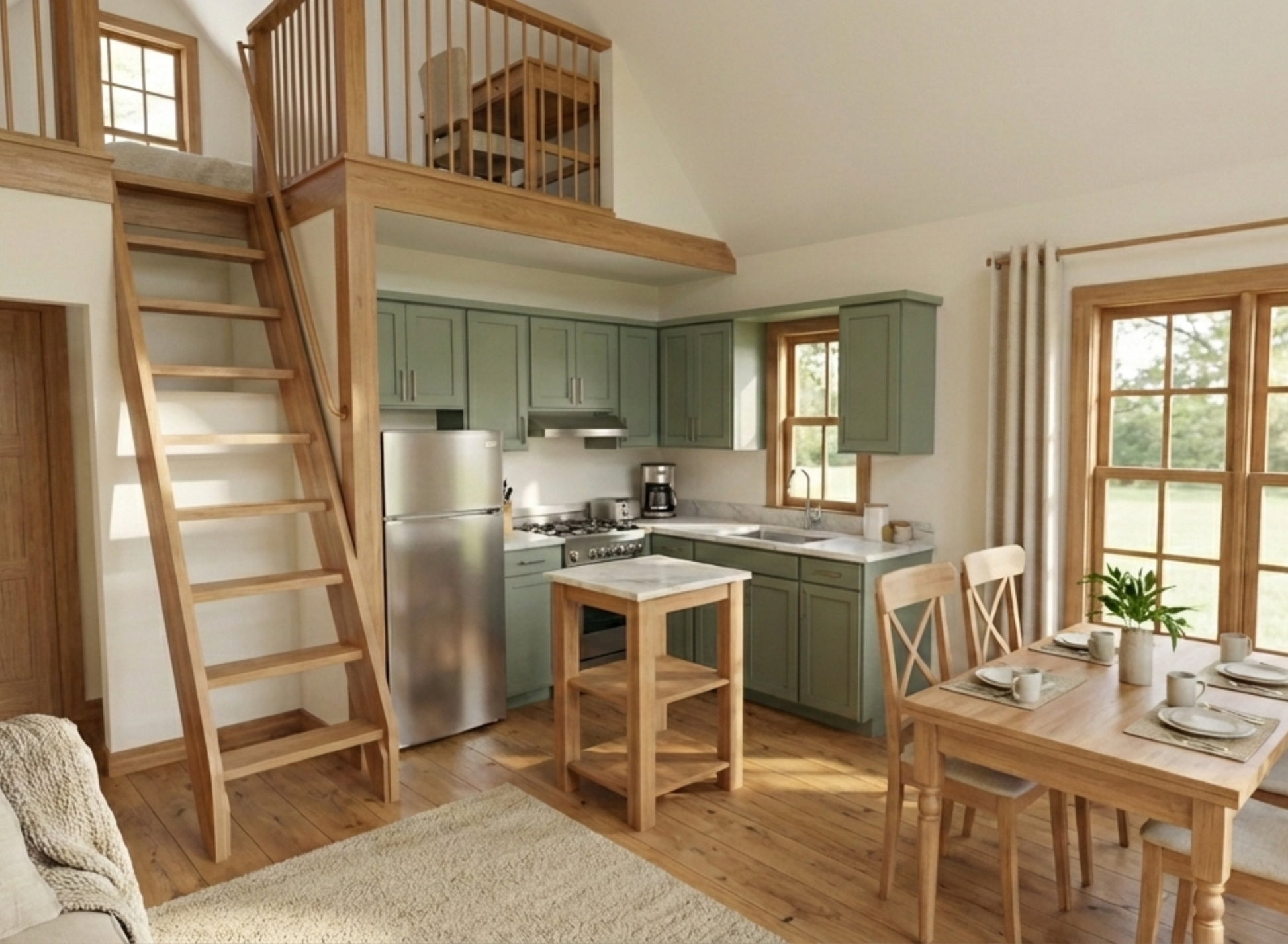

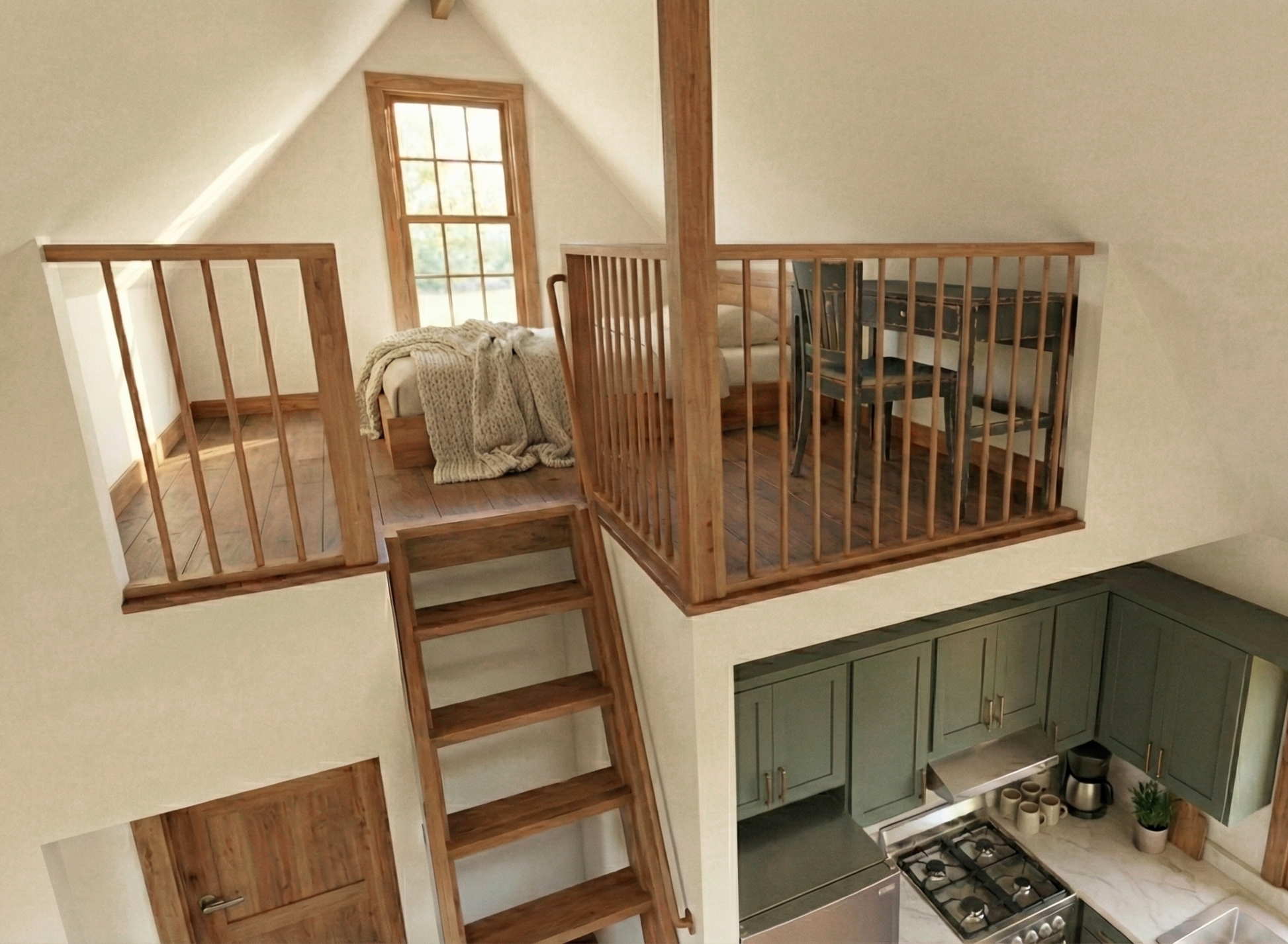

Layout: 1 Bedroom, 1 Bath, open loft
Format: Professionally drawn PDF construction plans – instant download
Skill Level: Suitable for experienced homeowners with basic building knowledge

Features You’ll Love:

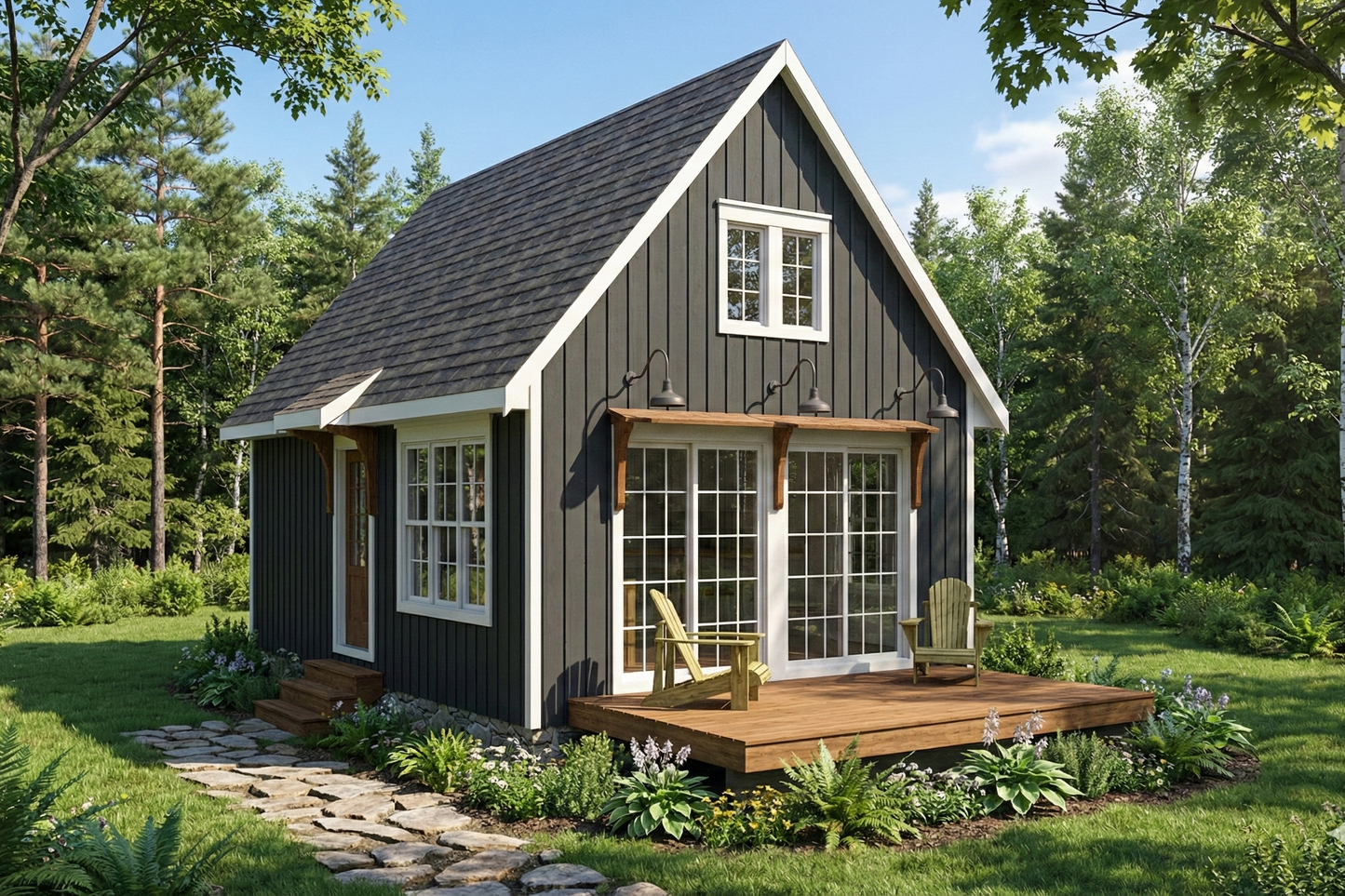

• Large front deck for morning coffee & relaxing

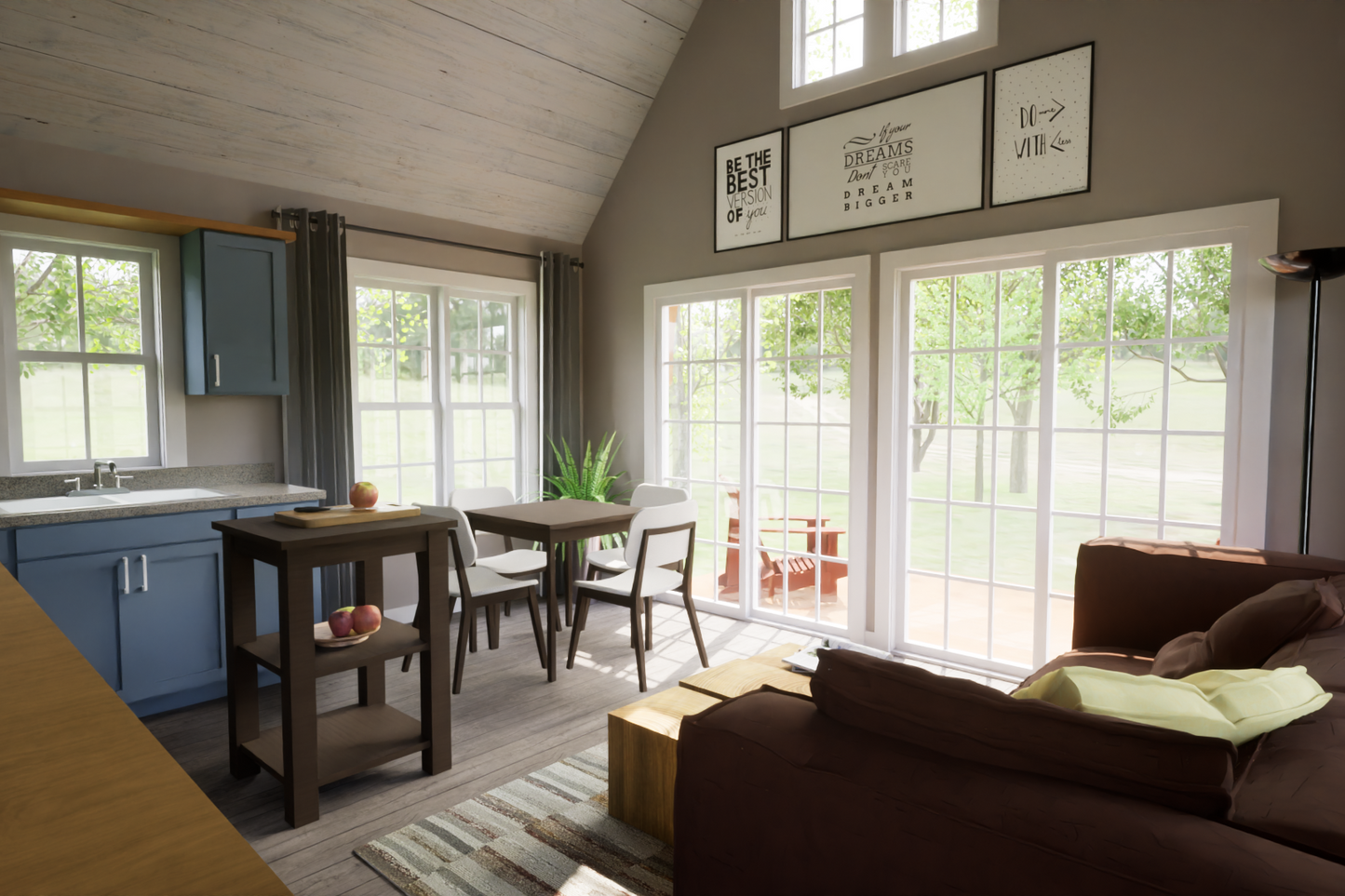

• Vaulted ceilings in living/dining/kitchen area
• 2 French doors for great lighting and views
• Main-level bedroom with adjacent bath & laundry access

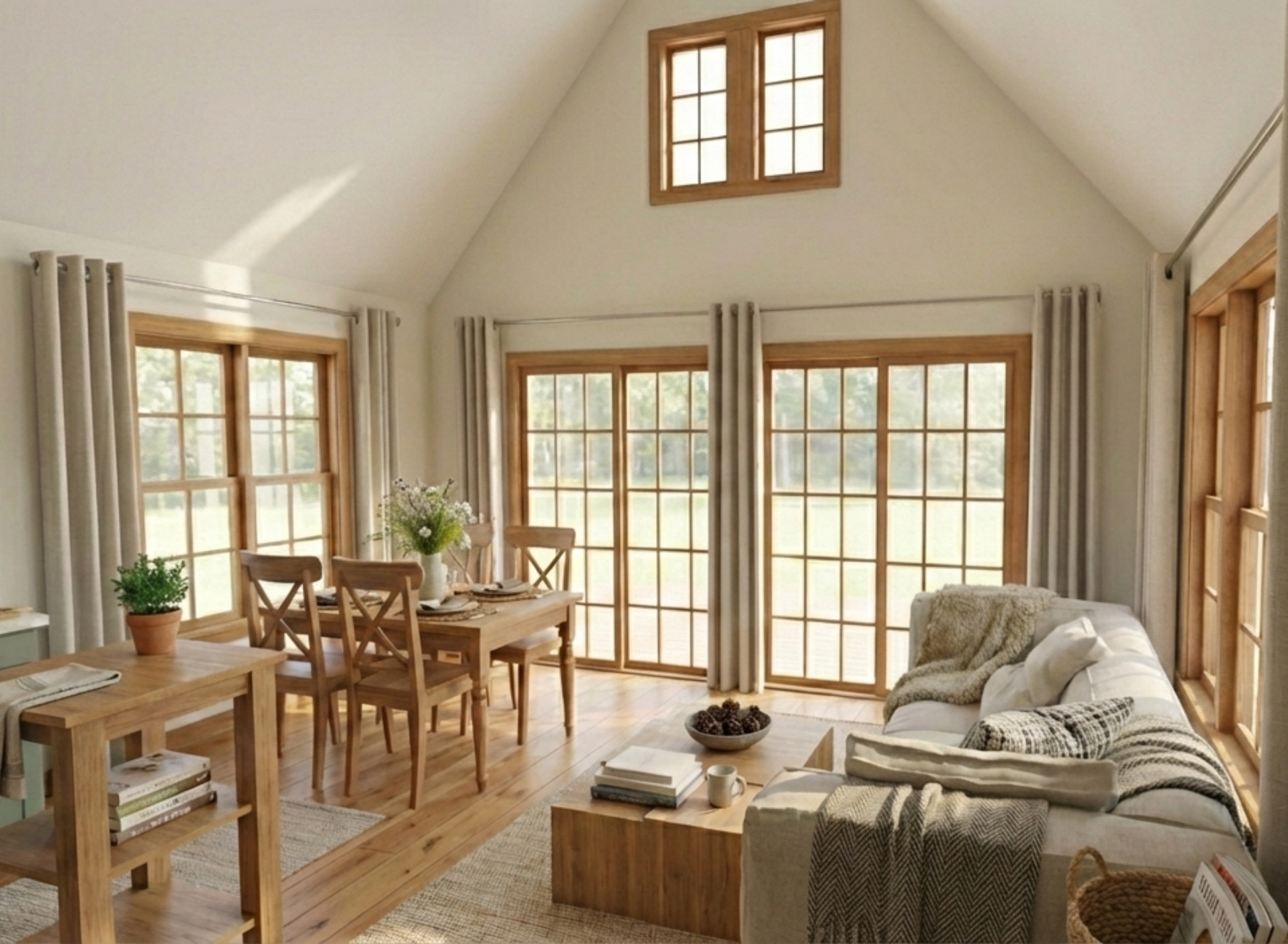

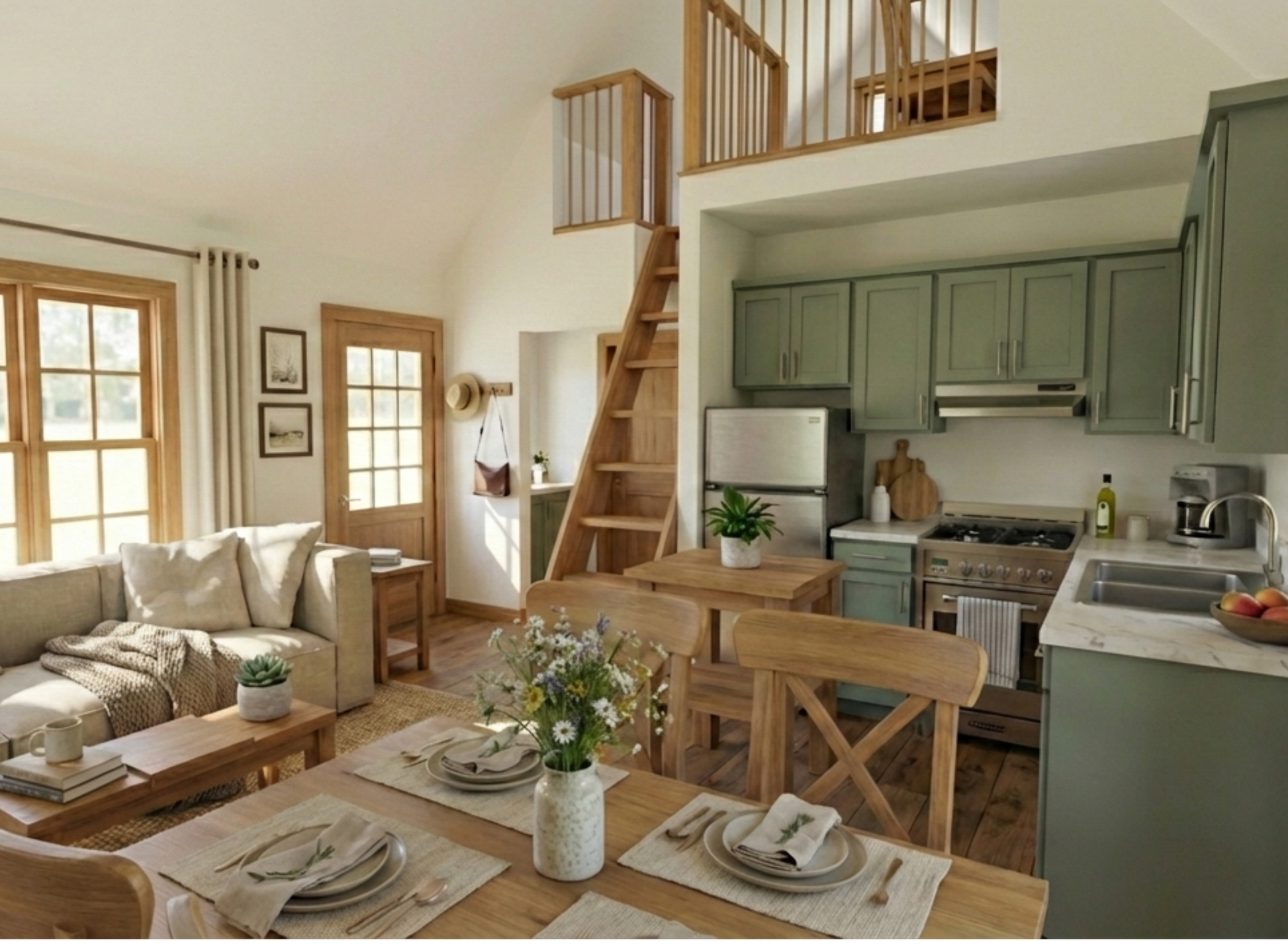

• Open-concept living and dining spaces

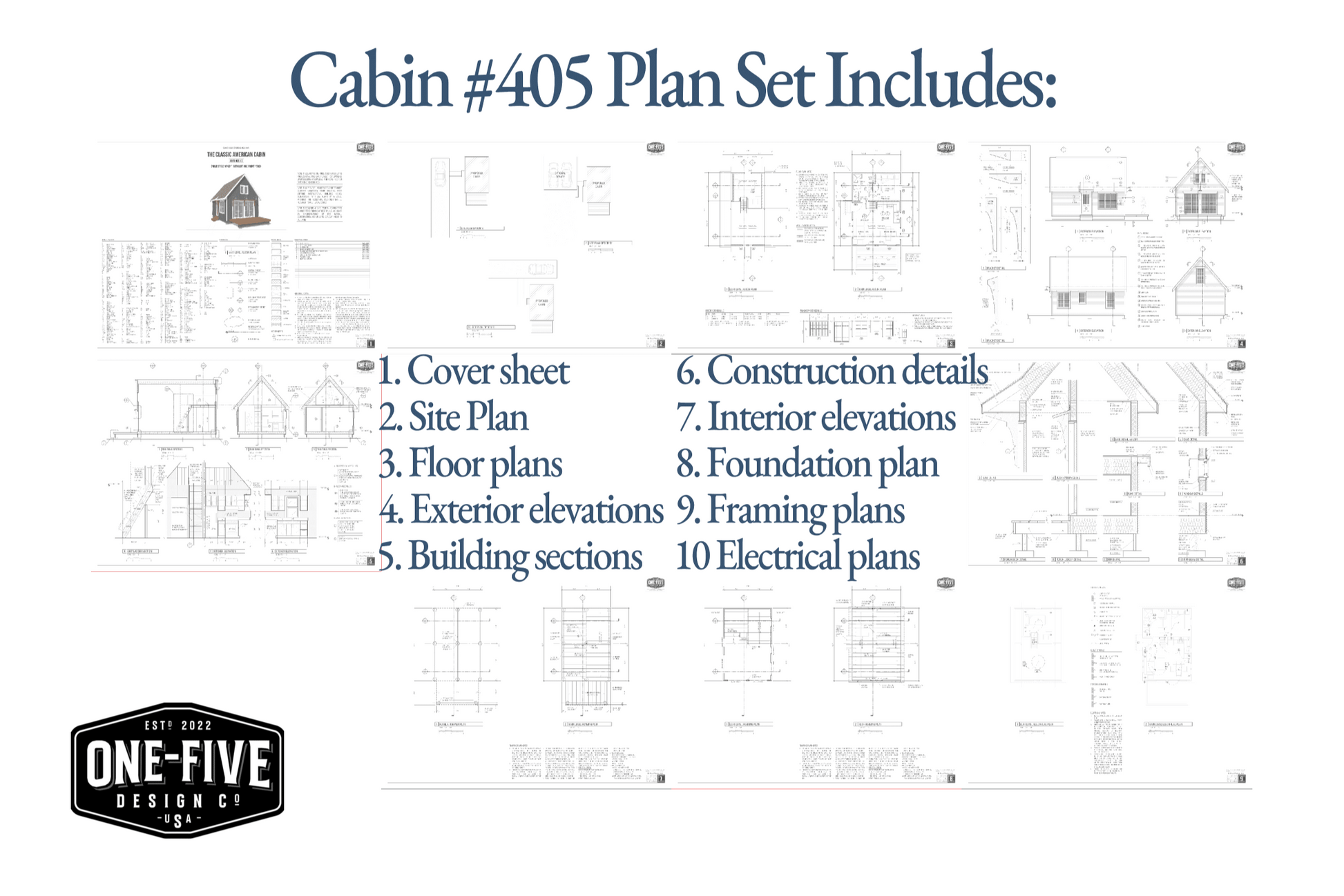

What’s Included in Your Plan Set:

• Cover sheet & site plan options

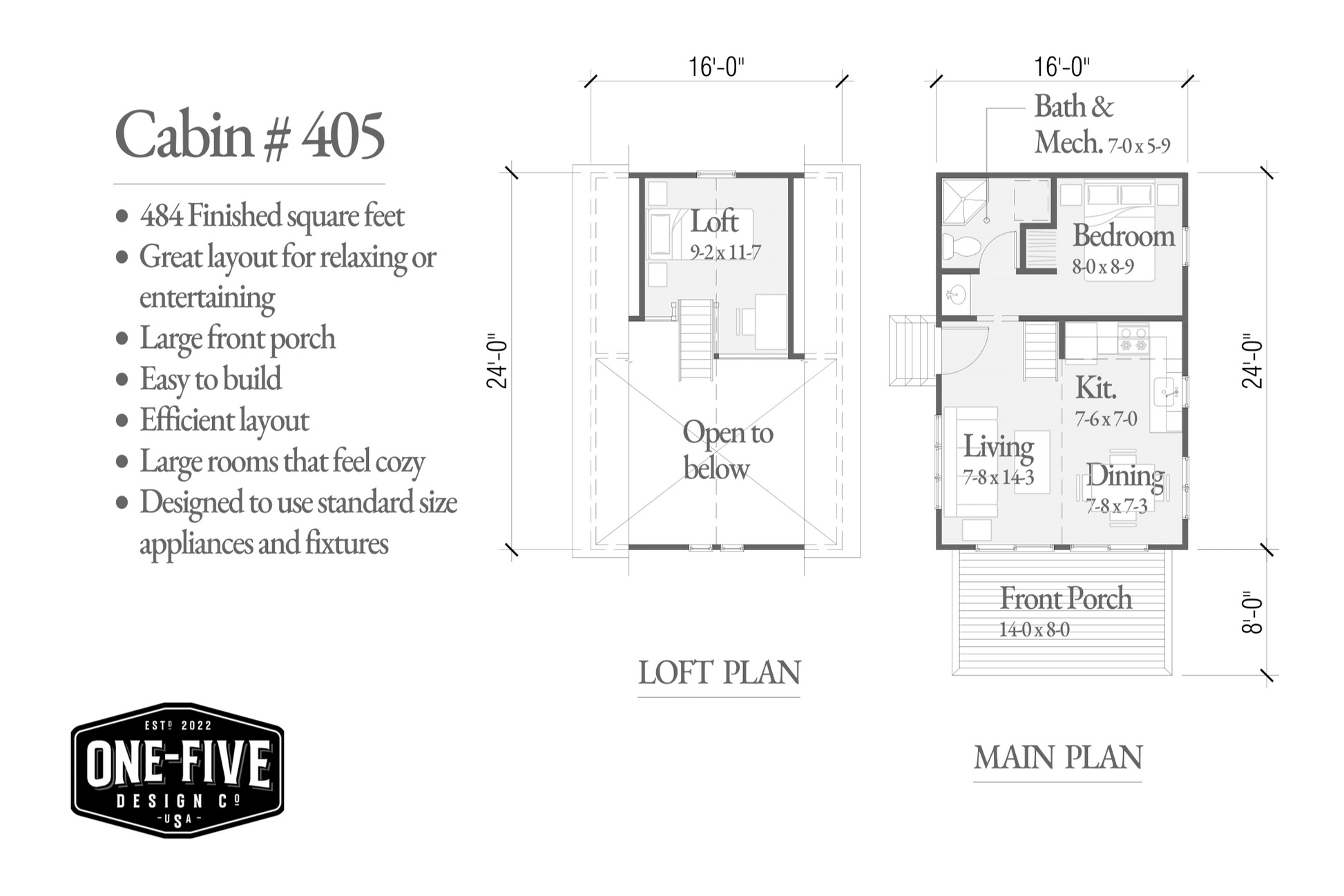

• Main level & loft floor plans
• Exterior elevations
• Building sections & construction details
• Interior elevations
• Foundation plan (pier, slab-on-grade, and crawlspace options)
• Framing plans
• Electrical layout for both levels

Why Choose This Plan:

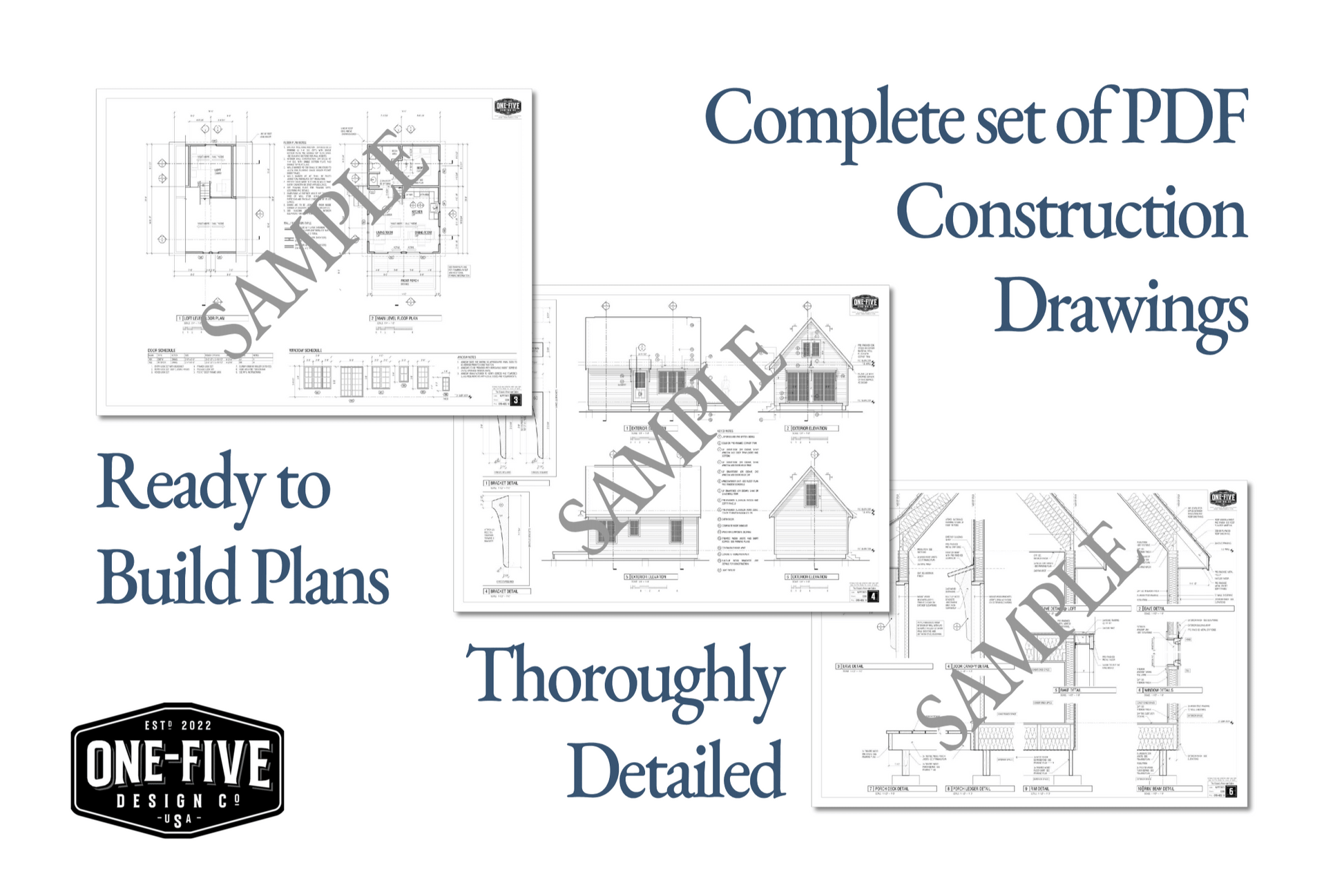

Ready for permit submittal and contractor pricing – not just concept drawings
Designed for efficiency, ease of construction, and timeless appeal
Instant download – send to a local print shop for printing (18"x24" sheets)

Whether you’re building a cozy weekend retreat, a functional guest house, or your forever small home, Cabin Plan #405 provides everything you need to start your project with confidence. These professionally drawn, permit-ready plans are designed for efficient, practical, and beautiful construction.

If you have any questions before purchasing, please send me a message — I’m always happy to help you choose the right plan and get you started on the right track.
