The X-Bench — Folding Portable Workbench Plans

The X-Bench

Folding Portable Workbench Plans

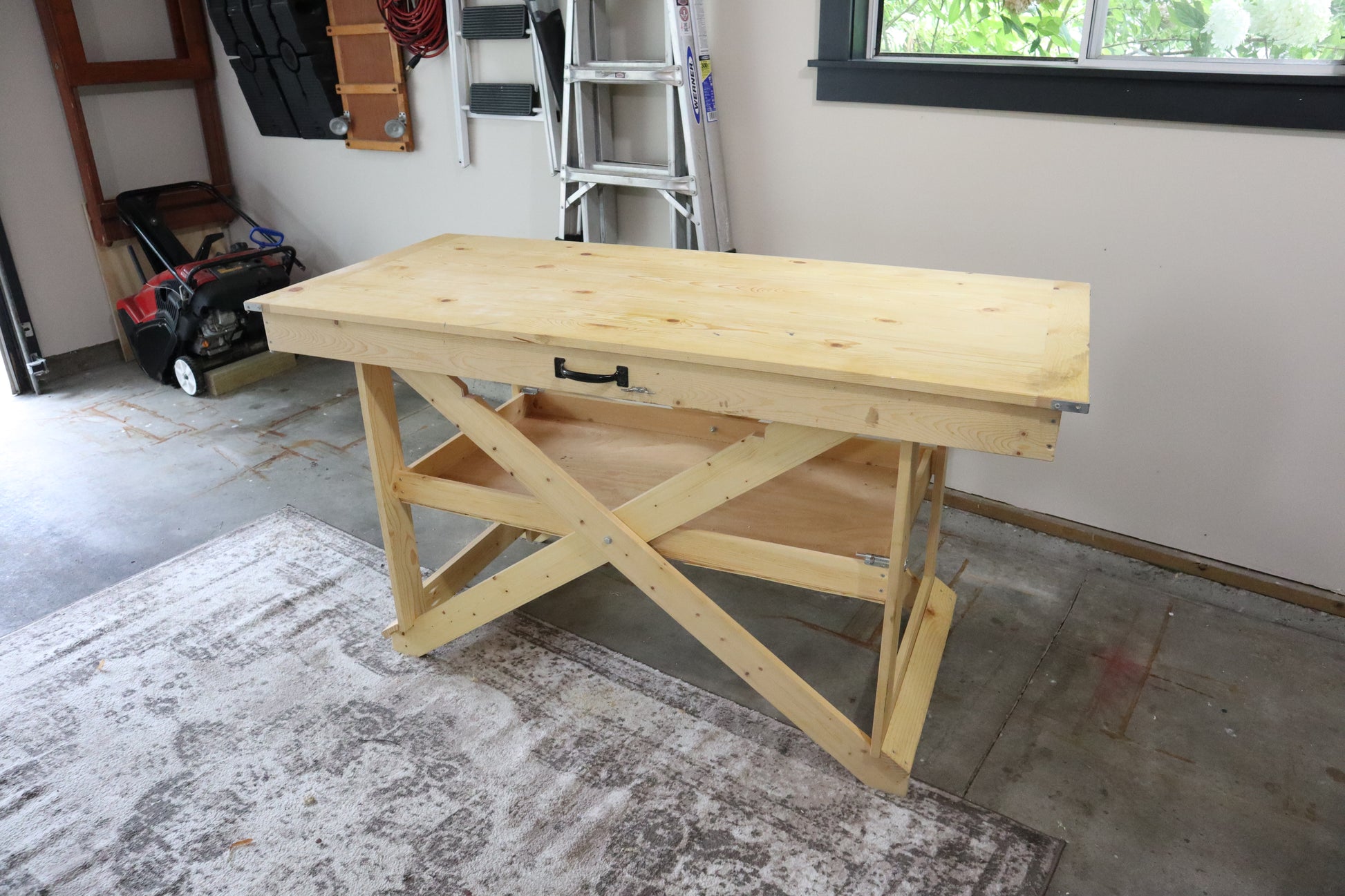

A lightweight folding workbench featuring a self-supporting X-style base that deploys in seconds. The X-Bench provides a full-size 30" × 60" work surface at standard bench height, then folds into a compact, suitcase-like form for easy storage and transport.

Designed for Small Shops and Flexible Spaces

Working in a small shop or garage often means trading bench space for mobility. The X-Bench was designed to solve that problem with a folding base that sets up quickly, supports a full-size work surface, and stores compactly when not in use.

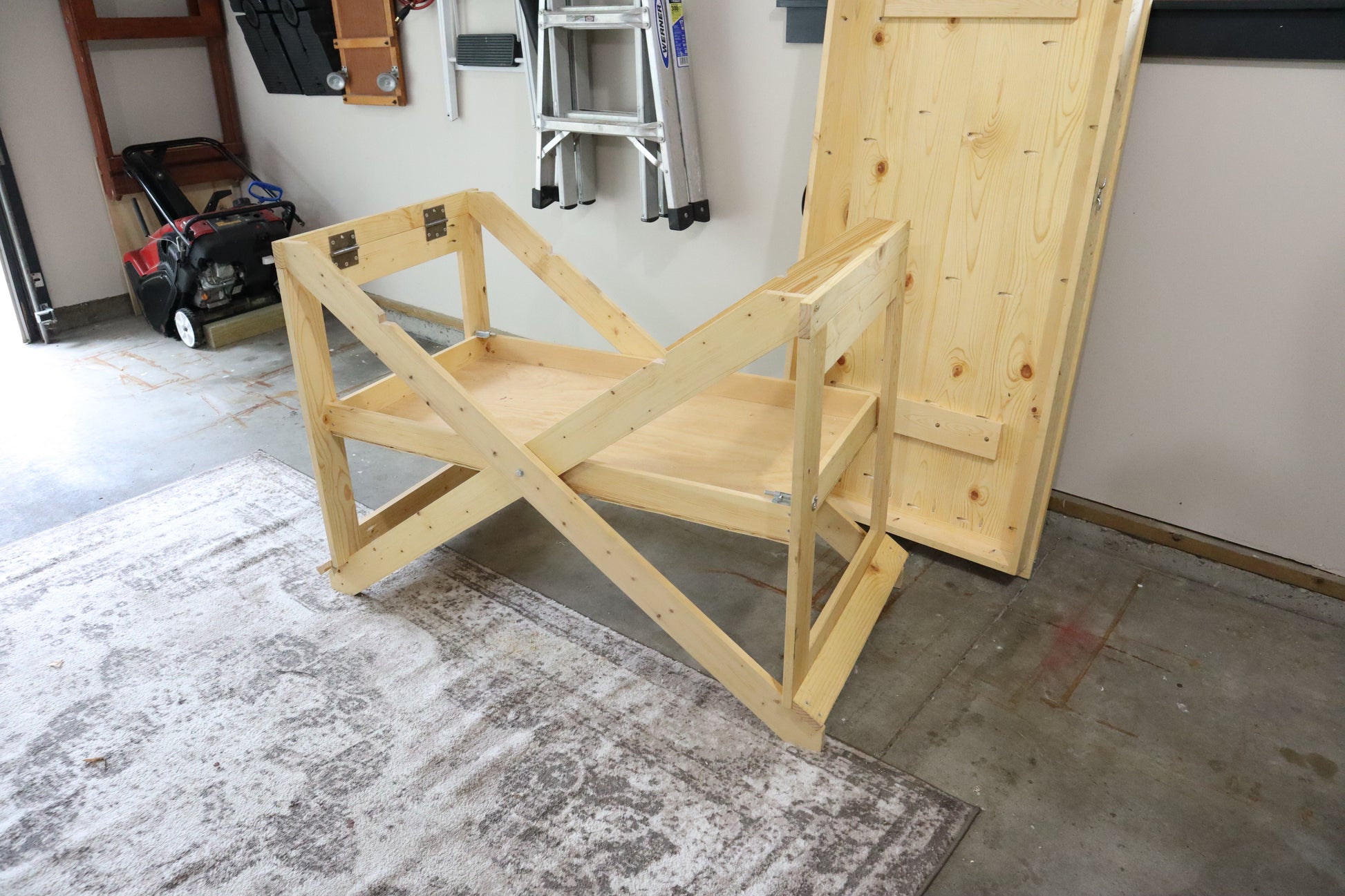

The base unfolds using a simple X-style scissor action, similar in concept to a folding tray table. Once deployed, it creates a strong, self-supporting base for the work surface above.

Quick Setup. Solid Support. Compact Storage.

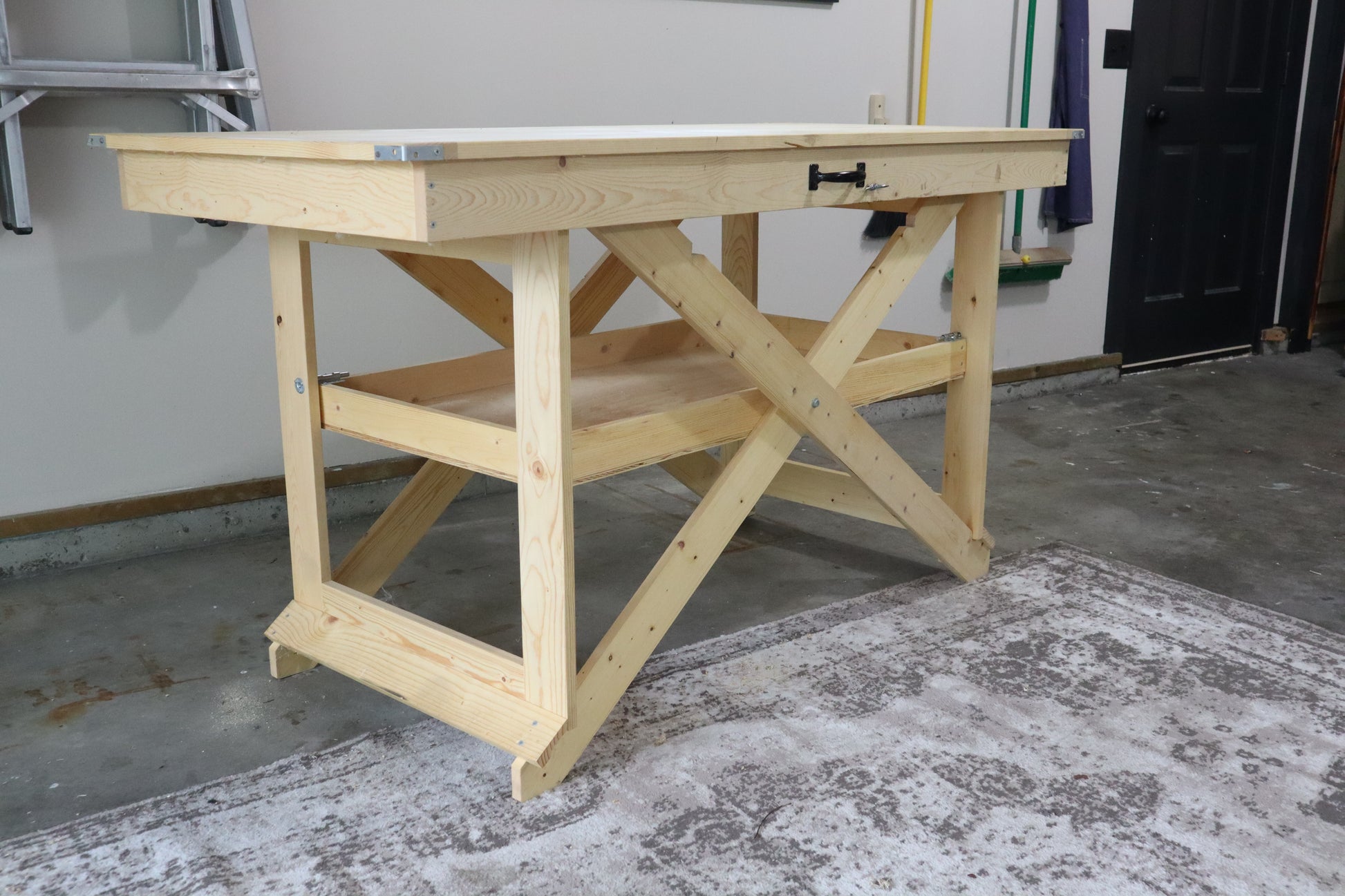

When set up, the X-Bench provides:

• Work surface: 30" × 60"
• Standard height: 36"
• Optional height: 42" (alternate version included)

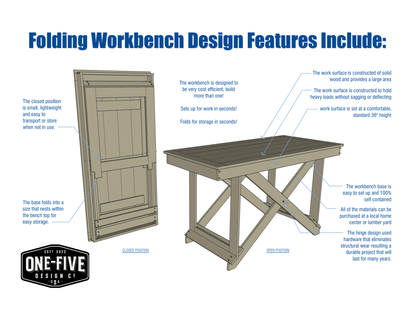

When folded, the base stores neatly into the underside of the top, creating a suitcase-like configuration that’s easy to carry, store, or move between spaces.

Lightweight, portable, and efficient, the X-Bench is ideal for temporary setups, shared spaces, or shops where flexibility matters.

Why the X-Bench Works

• Fast setup and breakdown: Ready to use in seconds
• Compact storage: Folds into a slim, easy-to-store form
• Portable: Lightweight and easy to move
• Straightforward construction: Uses common, inexpensive materials
• Versatile: Suitable for woodworking, DIY, crafts, and general shop use

No permanent footprint. No wall mounting. Just a practical bench when you need it.

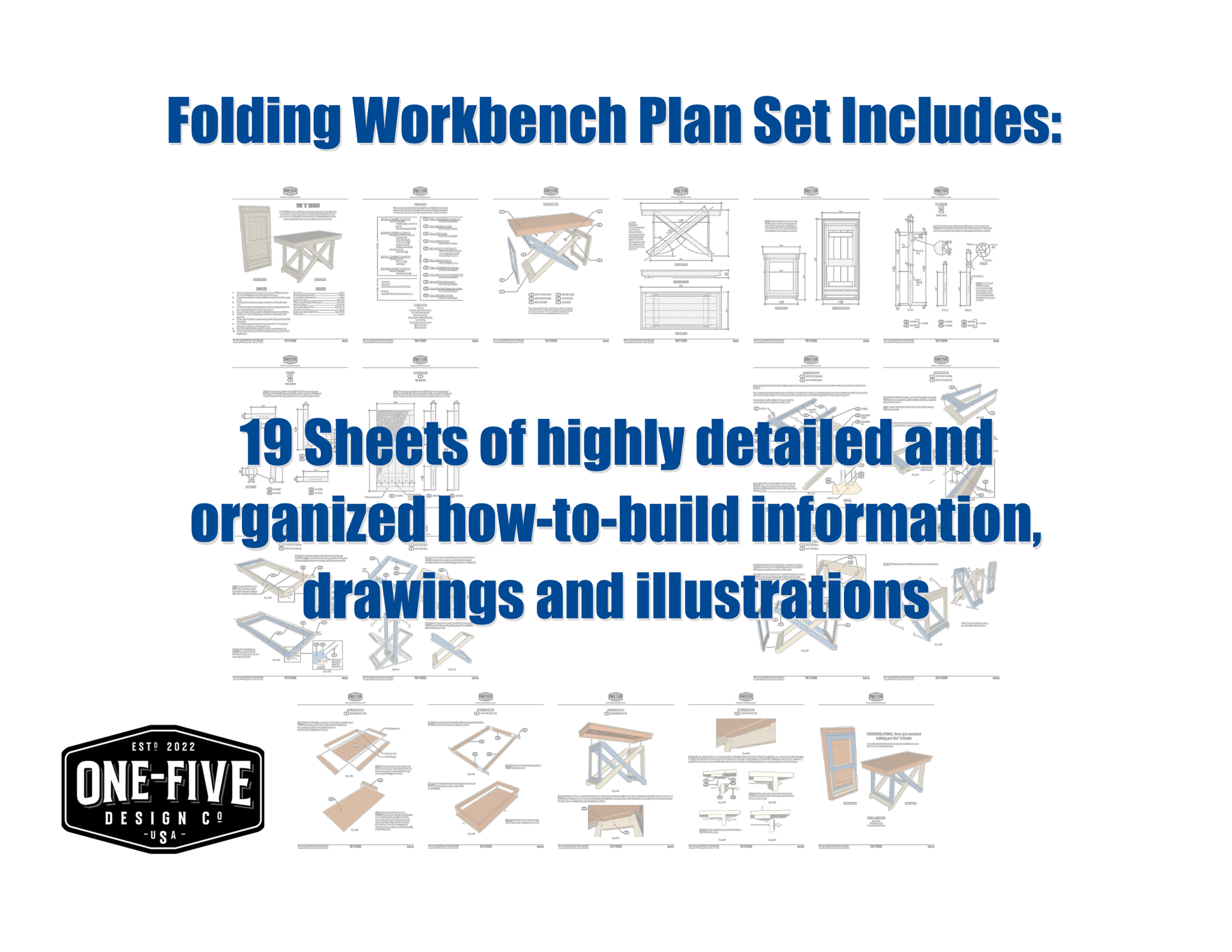

What’s Included in the Plans (19 Pages)

This downloadable plan set includes:

• Materials list
• Tool list
• Fully dimensioned parts cut list (Imperial)

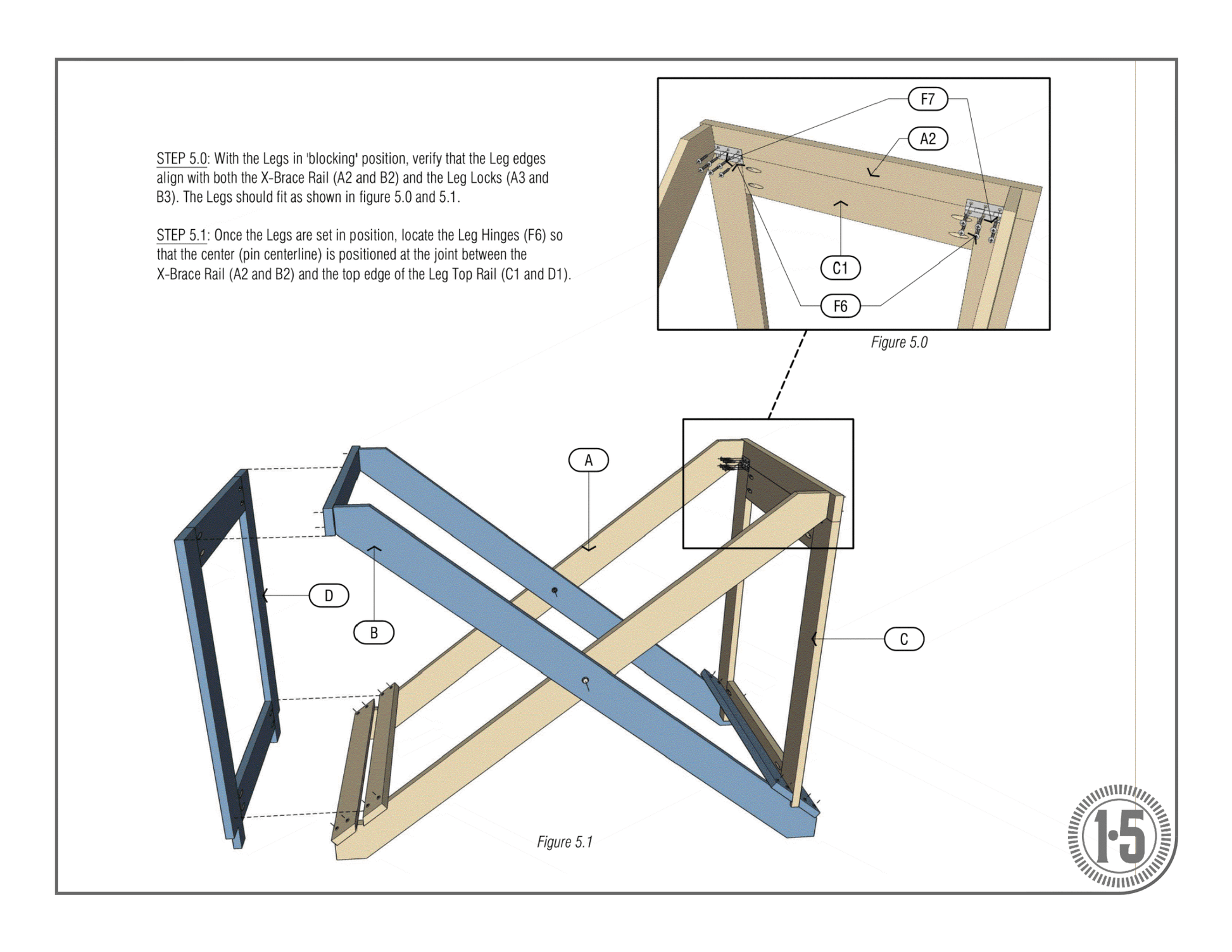

• Step-by-step written and illustrated instructions
• Two size options:
• Standard height (36")
• Tall height (42")

Plans are designed for easy construction using materials available at most home improvement stores.

A Simple, Flexible Workshop Solution

The X-Bench is ideal for anyone who needs a portable folding workbench that’s quick to deploy, easy to store, and strong enough for real work—without adding clutter to the shop.
